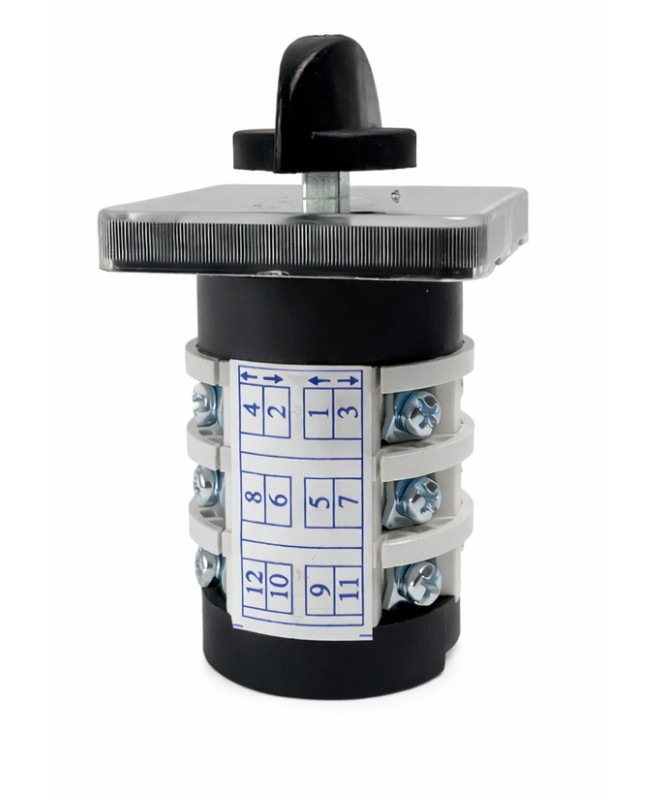

Package Selector Switch YMZ12-32/3
Technical specifications:
Model: YMZ12-32
Type: packaged (rotary cam switch)
Rated current: 32A
Rated voltage: up to 690V
Poles: 3
Positions: various configurations (0-1-2)
Switching angle: ~45°
Mechanical life: ~60,000 cycles
Contacts: silver (for better conductivity)
Mounting: panel (enclosure)
Material: heat-resistant plastic
Weight: 0.280 kg.
The YMZ12-32 selector switch is a high-quality industrial selector switch designed for controlling and switching electrical circuits under higher loads. It is suitable for installation in electrical panels, machines, and automated systems.
With a rated current of up to 32A and a voltage of up to 690V, this model is an excellent choice for applications requiring reliability and a long service life.
✅ Applications:
Motor control
Phase switching (on/off, reverse)
Electrical panels and industrial panels
Machinery and automation
✅ Advantages:
High current (32A) – suitable for higher power loads
Reliable and durable construction
Flexible configurations (positions and poles)
Easy installation and maintenance
Wide range of industrial applications

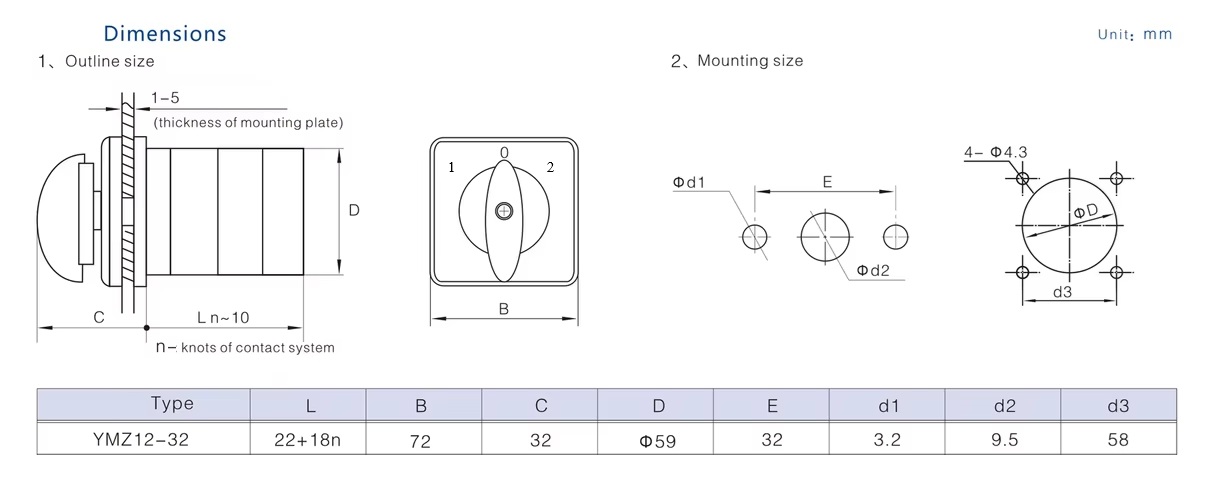

Чертеж
73,0 KB
