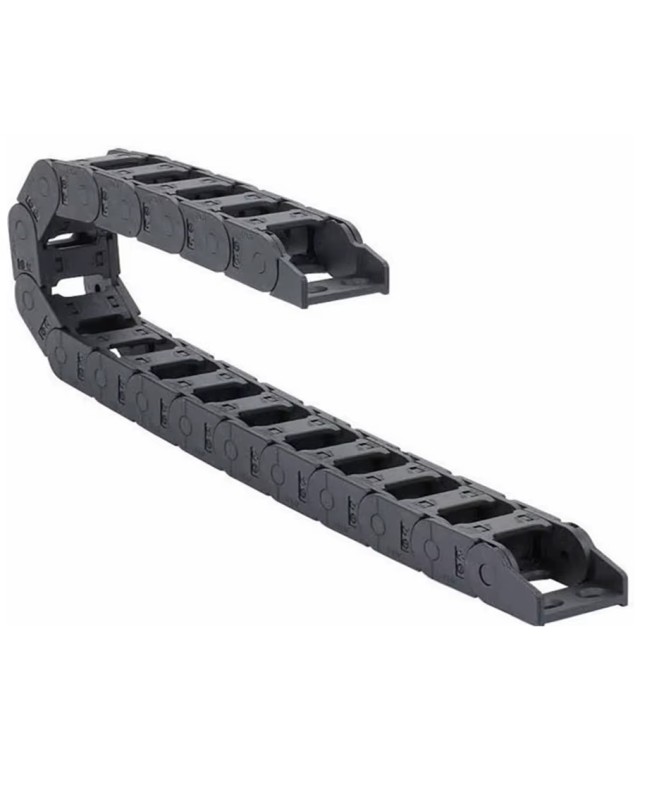

Cable Drag Chain 25x50 - EXPCC2550ODC
Model - EXPCC2550ODC
Inner height – 25 mm
Inner width – 50 mm
Outer height – 35 mm
Outer width – 65 mm
Bending radius - 55 mm
Distance between holes – 33 mm
Type – open on both sides
Tensile strength: 99 MPa
Operating temperature - from - 40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.850 kg.
Cable drag chains and systems are used to guide and protect cables during the movement of industrial and consumer machinery. Their design facilitates cable installation and maintenance, and their structure resembles tank tracks, consisting of many joints that can bend. They are wear-resistant and can operate at high speeds. They are widely used in CNC machines, electrical equipment, stone processing machines, plastic cutting, glass and window frame cutting, automated manipulators, and others.
