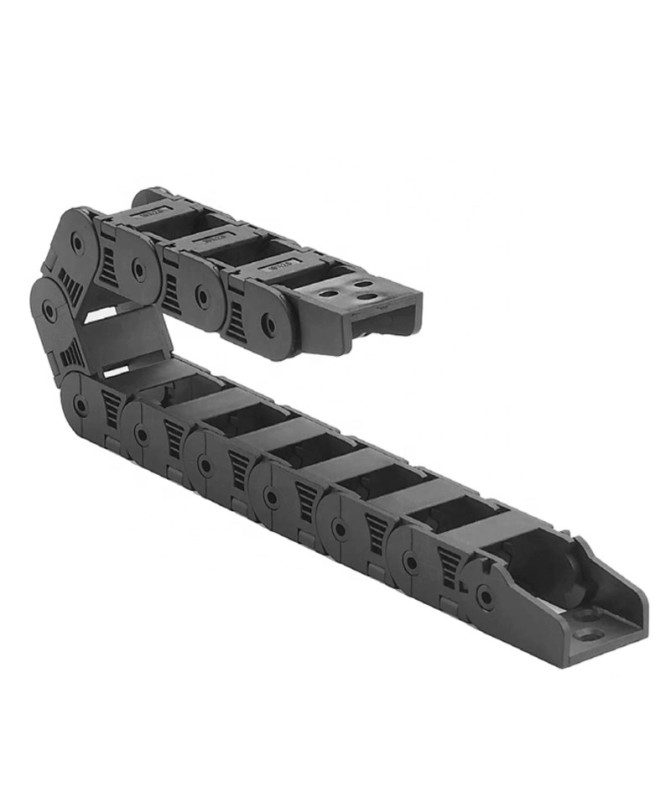

Cable Drag Chain 18x37 - EXPCC1837ODC
Model: EXPCC1837ODC
Inner height – 18 mm
Inner width – 37 mm
Outer height – 23.6 mm
Outer width – 48.5 mm
Bending radius - 28 mm
Hole spacing – 25 mm
External open type
Tensile strength: 99 MPa
Operating temperature - from - 40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.500 kg.
Cable drag chains and systems are used to guide and protect cables during the movement of industrial and consumer machinery. Their design facilitates cable installation and maintenance, and their structure resembles tank tracks, consisting of multiple joints that can bend. They are wear-resistant and can operate at high speeds. They are widely used in CNC machines, electrical equipment, stone processing machines, plastic processing, glass and window frame cutting, automated manipulators, and other applications.
