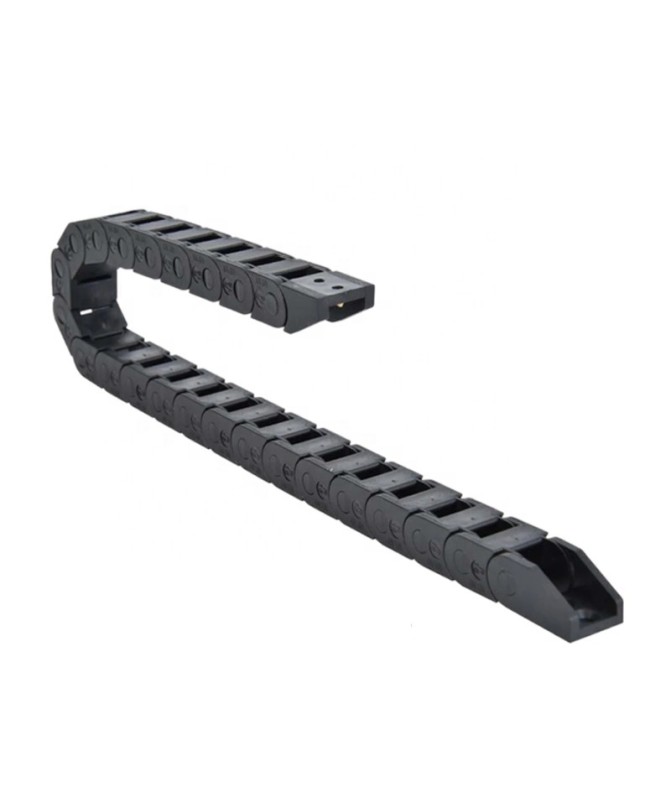

Cable Drag Chain 10x15 - EXPCC1015CDC
Internal height – 10 mm
Internal width – 15 mm
External height – 15 mm
External width – 23 mm
Bending radius - 28 mm
Distance between holes – 20 mm
Type - closed
Tensile strength: 99 MPa
Operating temperature - from -40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.170 kg
Cable drag chains and systems are used to guide and protect cables during the movement of industrial and consumer machinery. Their design facilitates cable installation and maintenance, and their structure resembles tank tracks, consisting of multiple joints that can bend. They are wear-resistant and can operate at high speeds. They are widely used in CNC machines, electrical equipment, stone processing machines, plastic processing, glass and window frame cutting, automated manipulators, and other applications.
