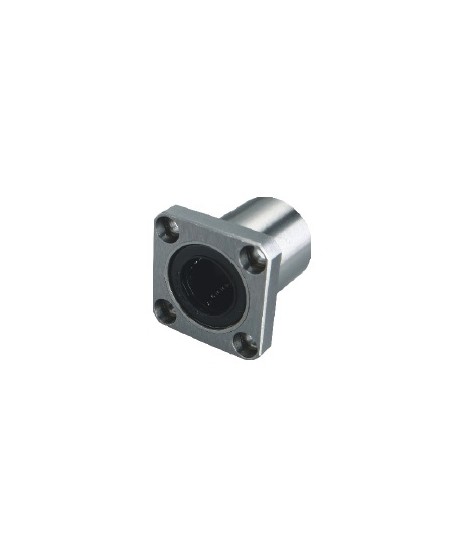

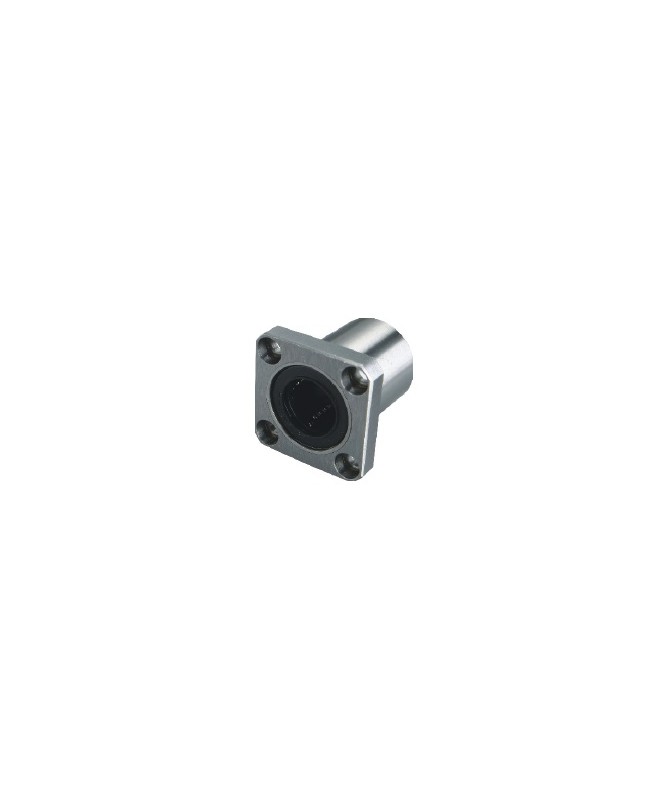

Linear bearing LMK30 - EXFLMK30
Model – LMK30
Ball rows – 6
dr – 30
D – 45
L – 64
D1 – 74
H – 10
PCD – 60
K – 58
W – 51
A – 49
F – 35
d1 x d2 x h – 6.6 x 11 x 6.1
Eccentricity (max) – 15
Radial clearance (max): -8
Dynamic load – 157 kg
Static load – 274 kg
Weight – 0.470 kg
The LMK series bearing is a cylindrical plain bearing that includes a flange, making it easy to mount and install. This type of bearing is widely used in engineering and manufacturing processes due to its reliability and ease of installation.
Key features:
Material :
- The bearing housing is made of high-quality steel, and the inner bearing can be made of bronze, steel, or another material with anti-friction properties.
Shape and design :
- The bearing has a cylindrical shape with an external flange at one end.
- The flange has mounting holes, facilitating the fixing of the bearing onto the surface.
Application :
- Widely used in various mechanical systems such as machine tools, robots, and other industrial equipment.
- Ideal for applications requiring precise positioning and stable operation.
Dimensions :
- Available in various sizes to meet specific application requirements. Dimensions may vary by inner diameter, outer diameter, and flange thickness.
Advantages :
- Easy to install thanks to the flange.
- High wear resistance and durability.
- Ensures stable and smooth operation with minimal friction.
Maintenance :
- Requires periodic lubrication depending on the material and operating conditions.
- Easy access for inspection and replacement thanks to the flange design.
