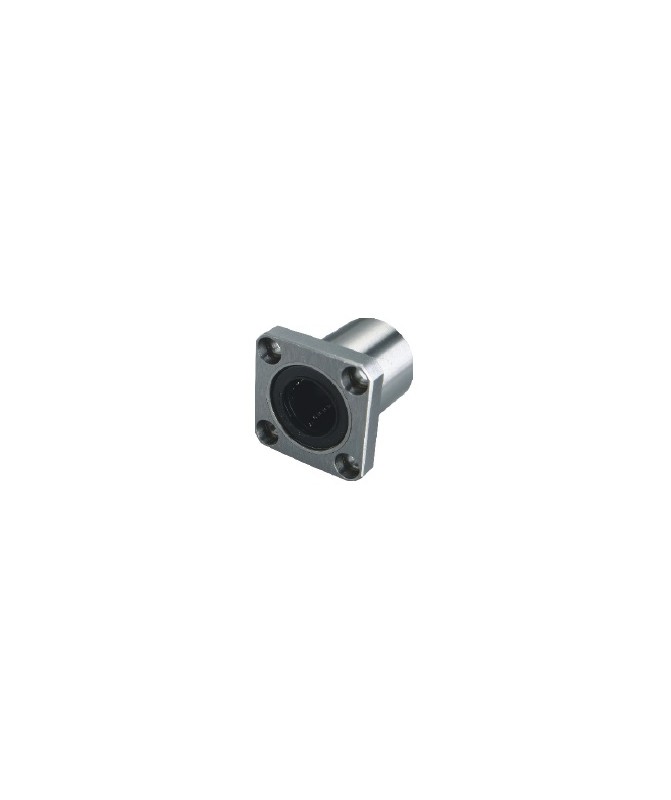

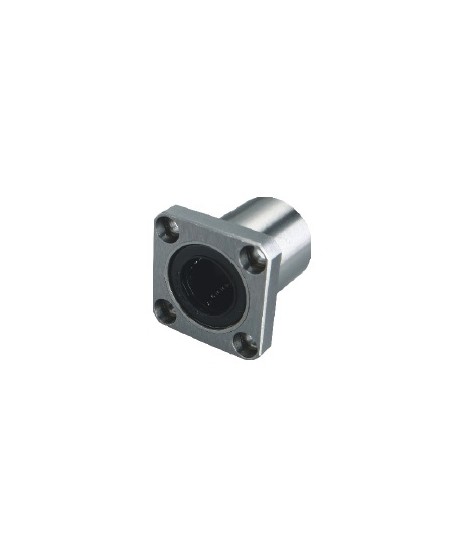

Linear bearing LMK16 - EXFLMK16
Model – LMK16
Ball rows – 5
dr – 16
D – 28
L – 37
D1 – 48
H – 6
PCD – 38
K – 37
W – 34
A – 31
d1 x d2 x h – 4.5 x 7.5 x 4.1
Eccentricity (max) – 12
Radial clearance (max): -6
Dynamic load – 89 kg
Static load – 139 kg
Weight – 0.180 kg
The LMK series bearing is a cylindrical plain bearing that includes a flange, making it easy to mount and install. This type of bearing is widely used in engineering and manufacturing processes due to its reliability and ease of installation.
Key features:
Material :
- The bearing housing is made of high-quality steel, and the inner bearing can be made of bronze, steel, or another material with anti-friction properties.
Shape and design :
- The bearing has a cylindrical shape with an external flange at one end.
- The flange has mounting holes, facilitating the fixing of the bearing onto the surface.
Application :
- Widely used in various mechanical systems such as machine tools, robots, and other industrial equipment.
- Ideal for applications requiring precise positioning and stable operation.
Dimensions :
- Available in various sizes to meet specific application requirements. Dimensions may vary by inner diameter, outer diameter, and flange thickness.
Advantages :
- Easy to install thanks to the flange.
- High wear resistance and durability.
- Ensures stable and smooth operation with minimal friction.
Maintenance :
- Requires periodic lubrication depending on the material and operating conditions.
- Easy access for inspection and replacement thanks to the flange design.
