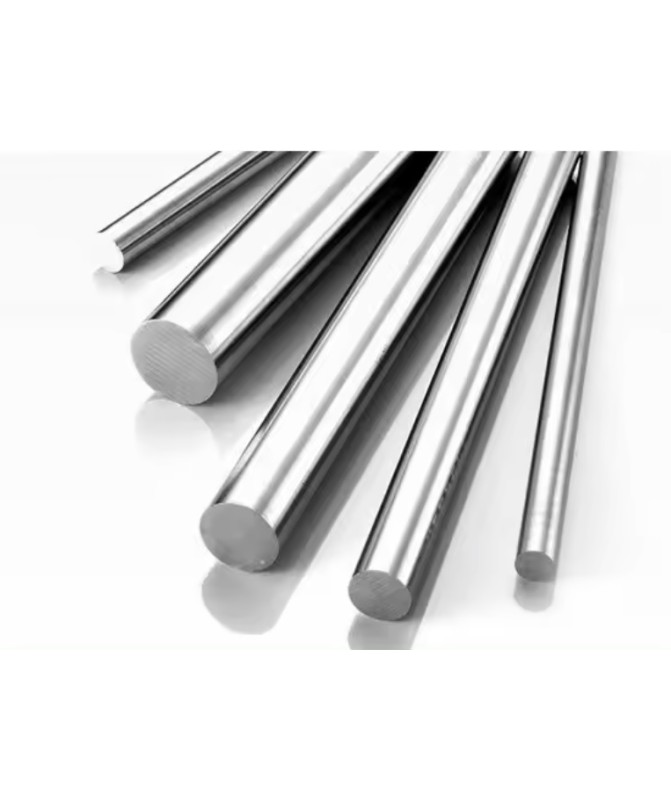

Guide for Linear Bearings F10
Model: F10
Outer diameter: 10mm
Accuracy tolerance:
- g6: from -0.005 to -0.014
- h6: from 0 to -0.009
Depth of hardened layer: 0.6 to 1.5
Material: high-quality steel S45C
Hardness: HRC 58-60
Maximum length: 4m
Approximate weight per 1 meter: 0.630kg
Cutting accuracy: ≤ 1 mm
Rails under 20 cm are not cut!
Linear guide rails and carriages are bearing components for linear motion, designed to provide free movement in one direction. They are designed with precise tolerances and withstand heavy loads, making them an ideal choice for applications where precise positioning of moving elements is required.
