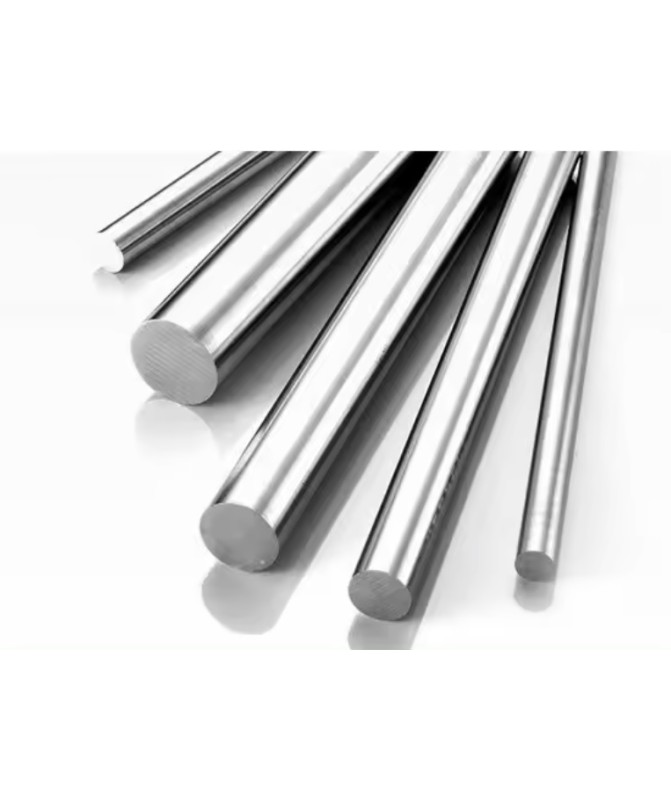

Guide for Linear Bearings F20
Model: F20
Outer diameter: 20mm
Accuracy tolerance:
- g6: from -0.007 to -0.020
- h6: from 0 to -0.013
Hardened layer depth: 0.8 to 2.0
Material: high-quality steel S45C
Hardness: HRC 58-60
Maximum length: 4m
Approximate weight per 1 meter: 2.500kg
Cutting accuracy: ≤ 1 mm
Rails under 20 cm are not cut!
Linear guide rails and carriages are bearing components for linear motion, designed to provide free movement in one direction. They are designed with precise tolerances and withstand heavy loads, making them an ideal choice for applications where precise positioning of moving elements is required.
