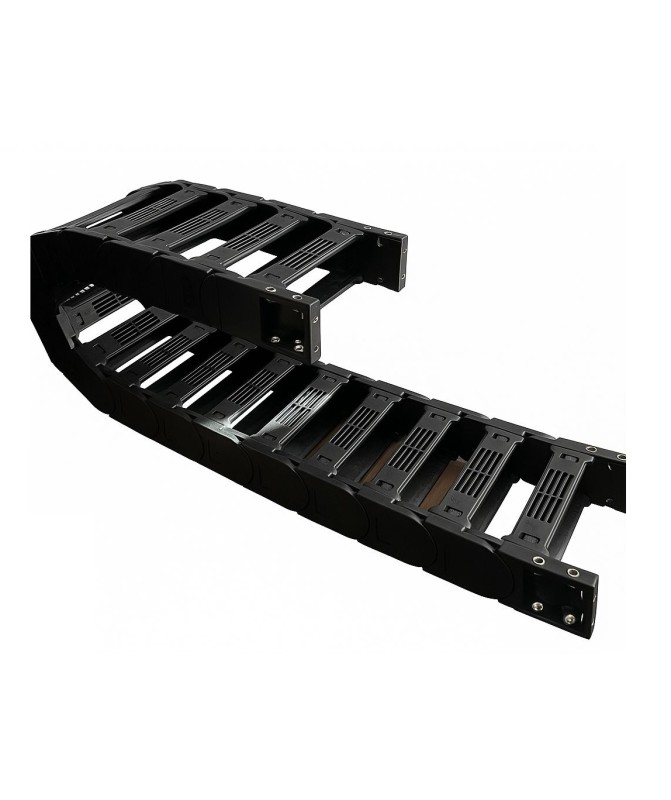

Cable Drag Chain 45x175 – EXPCC45175ODC
Model - EXPCC45175ODC
Inner height – 45 mm
Inner width – 175 mm
Outer height – 65 mm
Outer width – 205 mm
Bending radius - 75 mm
Hole spacing – 60 mm
Type – open on both sides
Tensile strength: 99 MPa
Operating temperature - from - 40℃ to +60℃
Material – PA66
Colour - black
Length – 1 metre
Weight: 2.500 kg.
Cable drag chains and systems are used to guide and protect cables during the movement of industrial and consumer machinery. Their design facilitates cable installation and maintenance, while their structure resembles tank tracks, consisting of multiple joints that can bend. They are wear-resistant and capable of high-speed operation. They are widely used in CNC machines, electrical equipment, stone processing machines, plastic and glass cutting, window and door frames, automated manipulators, and more.
