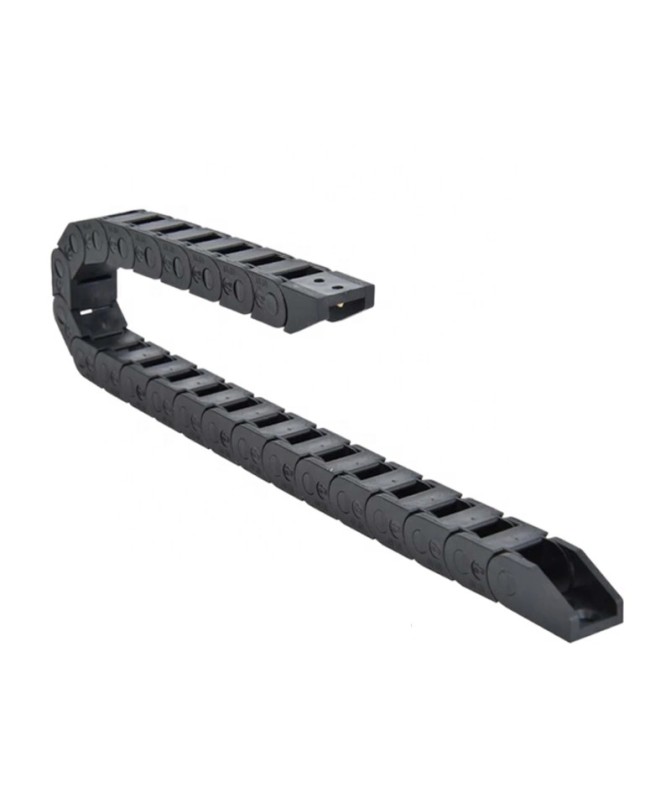

Cable Drag Chain 8x8 - EXPCC8CDC
Model - EXPCC8CDC
Inner height – 8 mm
Inner width – 8 mm
Outer height – 10.5 mm
Outer width – 14.5 mm
Bending radius – 18 mm
Hole spacing – 15.5 mm
Type – closed
Tensile strength – 99 MPa
Operating temperature – from - 40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.100 kg.
Cable drag chains and systems are used to guide and protect cables during the movement of industrial and consumer machinery. Their design facilitates the installation and maintenance of cables, and their structure resembles tank tracks, consisting of many joints that can bend. They are wear-resistant and can operate at high speeds. They are widely used in CNC machines, electrical equipment, stone processing machines, plastic cutting, glass and window frame cutting, automated manipulators, and other applications.
