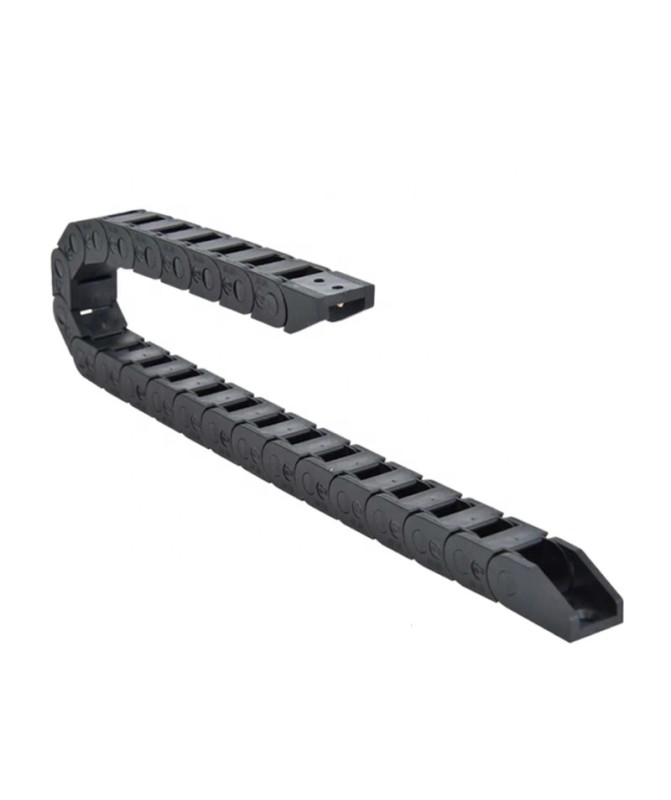

Cable Drag Chain 10x10 - EXPCC1010CDC
Model - EXPCC1010CDC
Inner height – 10 mm
Inner width – 10 mm
Outer height – 13.5 mm
Outer width – 17.7 mm
Bending radius – 28 mm
Hole spacing – 8 mm
Type – closed
Tensile strength – 99 MPa
Operating temperature – from - 40℃ to +60℃
Material – PA66
Length – 1 metre
Weight: 0.200 kg.
Cable drag chains and systems are used to guide and protect cables during the movement of industrial and consumer machinery. Their design facilitates cable installation and maintenance, and their structure resembles tank tracks, consisting of multiple joints that can bend. They are wear-resistant and can operate at high speeds. They are widely used in CNC machines, electrical equipment, stone processing machines, plastic processing, glass cutting and window/door frames, automated manipulators, and more.
