Mounting Bracket for NEMA 23–34 Stepper Motor – Aluminium DB57 / DB86 Series

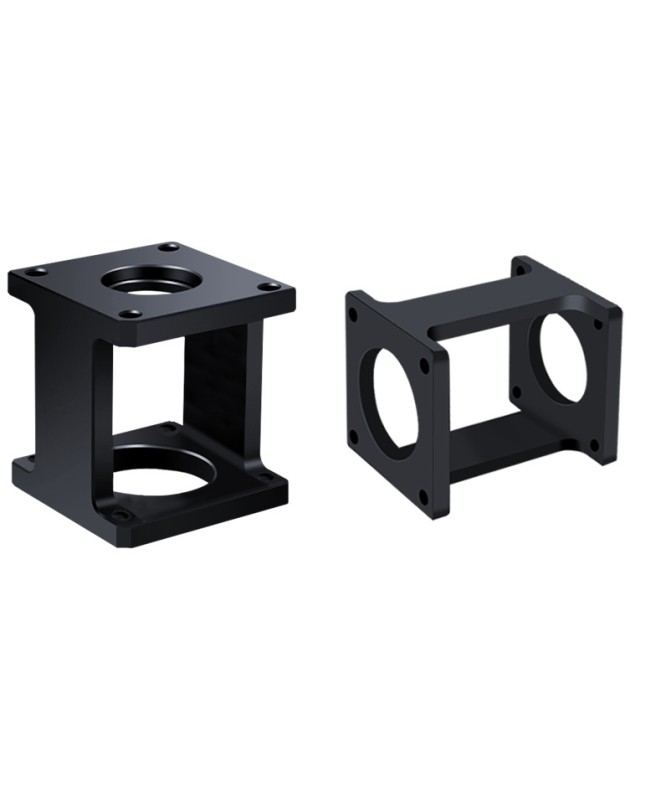

Aluminium Mounting Bracket for NEMA 23–34 Motors – DB Series (DB57 / DB86)

Technical illustration and specification table

Model: DB 57 - Nema 23

€9.12

Tax included

Description
Product Details

Model

Compatible
motor

Flange size
(mm)

Thickness

Material

Mounting type

Weight
(kg)

DB 57

Nema 23

57 * 57

5 mm

Aluminium (anodised, black)

Flange, M4/M5 holes

0.200

DB 86

Nema 34

86 * 86

6 mm

Aluminium (anodised, black)

Reinforced, flange

0.410

The DB series mounting brackets ("Basic Bracket") offer a universal solution for securing NEMA 23 to NEMA 34 stepper motors. Manufactured from anodised aluminium, they provide an optimal combination of lightness and strength.

Ideal for CNC machines, 3D printers, automated systems, and robotics, the DB57 and DB86 brackets are proven reliable under prolonged operation and load. Choose the correct model according to the motor size to achieve stable mounting without vibrations or distortion.

Advantages:

Universal design for several standard motors

Precision manufacturing and easy installation

Lightweight yet robust construction

High resistance to load and vibrations
