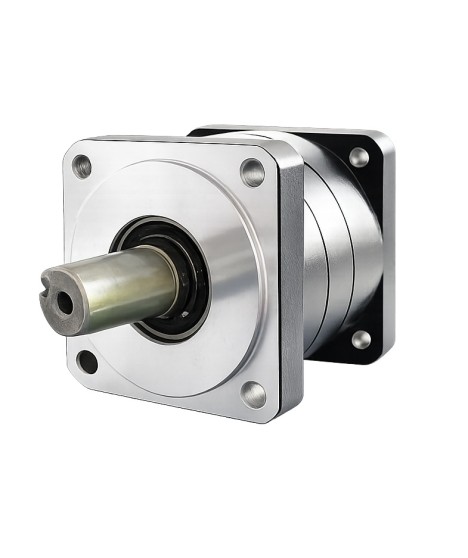

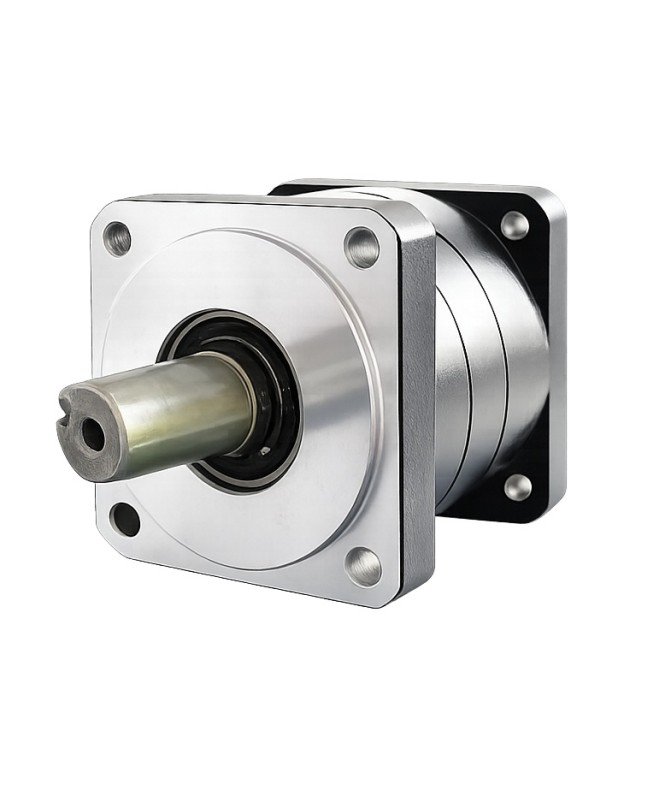

Planetary Gearbox PX86 – 1:5 / 1:10 / 1:20 / 1:100 for NEMA34

Planetary Gearbox for Nema 34 Motor - PX 86

Technical specifications:

Series: PX86 (NEMA34)

Flange: 86 mm (for servo/stepper motor)

Type: Planetary gearbox

Gear ratios:

1:5

1:10

1:20

1:100

Input shaft: 14 mm

Output shaft: 14 mm

Mounting: direct to stepper motor

Input shaft length: ~ 30mm

Efficiency: up to ~90–95%

Backlash: low

Construction: steel gears + aluminium housing

Model

Gear ratio

Application

Rated torque

Length

Weight

PX86 - 1:5

Low reduction

High speed, moderate torque

~40–60 Nm

80 mm

1.600 kg

PX86 - 1:10

Medium

Balance between speed and power

~60–80 Nm

86 mm

1.700 kg

PX86 - 1:20

High

Higher torque

~80–100 Nm

95 mm

2.100 kg

PX86 - 1:100

Very high

Maximum torque, low speed

up to 100 Nm

110 mm

2.750 kg

Model: 1:5
€66.00
Tax included

The PX86 planetary gearbox is a high-precision mechanical component designed for mounting to stepper or servo motors (most commonly NEMA34 – 86 mm). It increases torque and improves motion accuracy while simultaneously reducing rotational speed.

PX86 series gearboxes are widely used in CNC machines, automation, robotics, and industrial systems where high efficiency, smooth operation, and low backlash are required. Planetary gearboxes provide high efficiency and even load distribution between the gears.

Key advantages:

✔ Increases motor torque

✔ Improves accuracy and positioning

✔ Low backlash – suitable for CNC

✔ High efficiency and smooth operation

✔ Compact design

✔ Long service life

Applications:

✔ CNC machines and routers

✔ Linear drives

✔ Robotics and automation

✔ 3D printers and mechanisms

✔ Production lines

✔ Machine building
