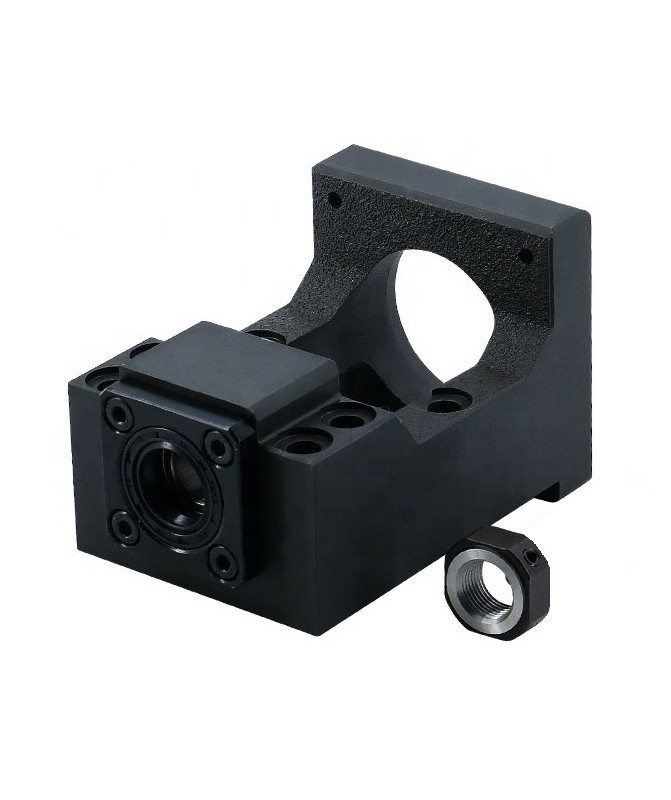

Integrated Mount for Nema 34 Motor and Ø20 Ball Screw – HM15-86

Model: HM15-86

Compatible motors: NEMA 34 Stepper / Servo motor

Compatible ball screw: C7 (e.g., SFU2005, SFU2010, etc.)

Support shaft diameter: Ø15 mm

Motor mounting hole: 86 mm (HM15-86)

Bearing type: Radial-axial, high-precision, double-sealed

Coaxiality accuracy: ≤ 0.02 mm

The integrated bracket HM15-86 is designed to connect a ball screw to a NEMA 34 stepper or servo motor. These models are distinguished by higher strength and coaxial accuracy, suitable for machines requiring greater torque and stability during movement. Made of black steel with an anodized coating, ensuring exceptional resistance to vibrations and precision during long-term operation. Ideal for CNC machines, linear modules, automation, robotics, and industrial motion systems.

Advantages:

Suitable for powerful motors with high torque

Precise centering of the ball screw and motor shaft

Exceptional strength and durability under load

Minimal vibrations and maximum stability during movement

Universal mounting and easy replacement of bearings or nut
