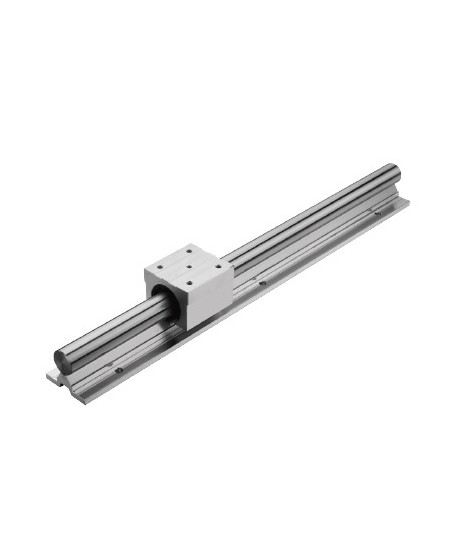

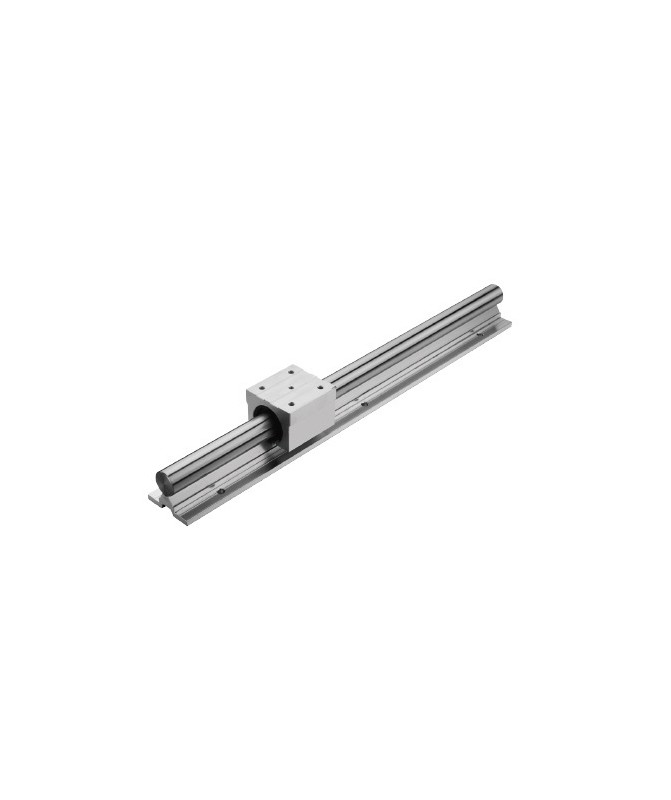

Linear Guide SBR C20
Diameter – Ø 20
E – 22.5
h – 27
B – 45
H – 17.7
T – 5
F – 19
X – 8
Y – 10
C – 30
P – 150
N – 20
S1 – Ø 5.5
S2 d1xd2xi – 5.5 x 9.5 x 5.4
Maximum length - 4 m.
Cutting accuracy: ≤ 1 mm
Approximate weight per 1 m.: 3.250 kg.
Rails under 20 cm are not cut!
Linear guide rails and carriages are bearing components for linear motion, designed to provide free movement in one direction. They are designed with precise tolerances and withstand heavy loads, making them an ideal choice for applications where precise positioning of moving elements is required.
3D модел
86,7 KB
