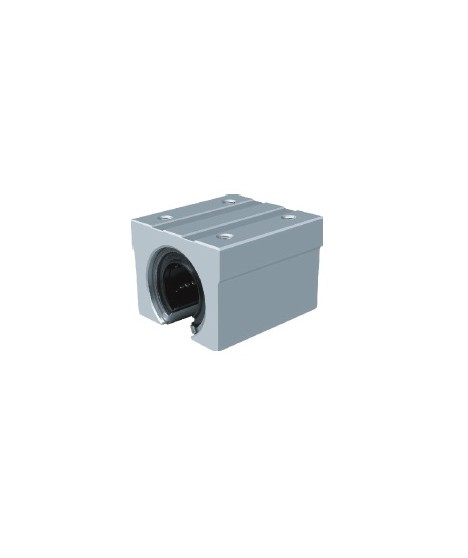

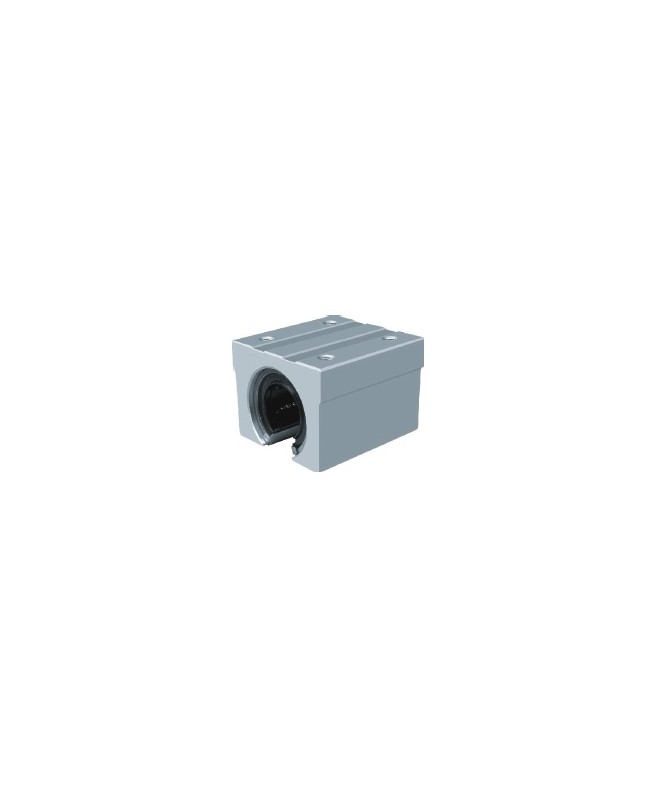

Linear Bearing SBR - C20 - EXSBR20UU
Diameter – 20
h – 23
E – 24
W - 48
L - 50
F - 39
T – 11
h1 - 10
θ - 600
B - 35
C – 35
S – M 6
e - 12
Dynamic load - 8.8 tonnes
Static load - 14.2 tonnes
Weight – 0.200 kg
SBR UU series linear bearings are linear guides designed to ensure smooth and precise movement along a specific axis. These bearings are used in various machines and equipment such as machine tools, automated systems, and 3D printers.
Key features:
Linear motion: Provide low friction and high-precision linear movement.
Bearing housing: Made of aluminium for durability and high strength.
Seals: The bearings have double seals (designation "UU"), which protect them from dust and contamination, extending their service life.
Easy to install: Equipped with mounting holes for easy equipment installation.
Compatibility: Suitable for use with round shafts of various sizes, making them versatile for many applications.
