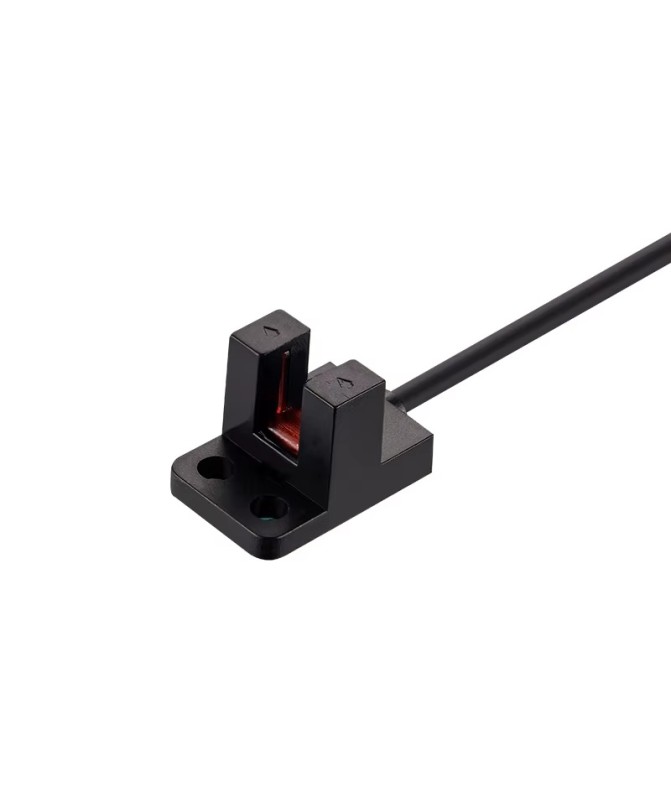

Photoelectric Fork Sensor - UXY45P
Technical specifications:
Brand: MOTEE
Model: UXY45P
Type: Photoelectric slot sensor
Output: PNP Open Collector
Slot width: 5 mm
Supply voltage: 5-24 VDC
Light source: Infrared LED (940 nm)
Minimum detectable object: ≥ 0.8 × 1.2 mm
Repeatability: ≤ 0.03 mm
Switching frequency: up to 3000 Hz
Cable length: 2 m
Mounting: Screw mounting
Application: Industrial automation
Weight: 0.035 kg
The MOTEE UXY45P photoelectric sensor is a professional solution for industrial automation, where fast and reliable object detection is required. The fork design allows for precise detection by interrupting an infrared light beam, ensuring high repeatability and minimal risk of errors.
The model is suitable for labeling machines, packaging systems, printing machines, assembly lines, and product counting. The PNP output allows for easy integration with PLC controllers and industrial control systems.
Advantages:
✔ High operating speed
✔ Excellent detection accuracy
✔ Compact size
✔ Easy installation
✔ PNP transistor output
✔ Suitable for PLC systems
Applications:
✔ Labeling machines
✔ Packaging lines
✔ Printing industry
✔ Product counting
✔ Position control
✔ Automated production systems
