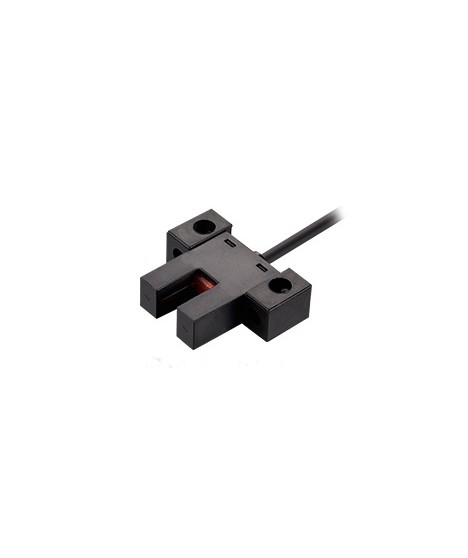

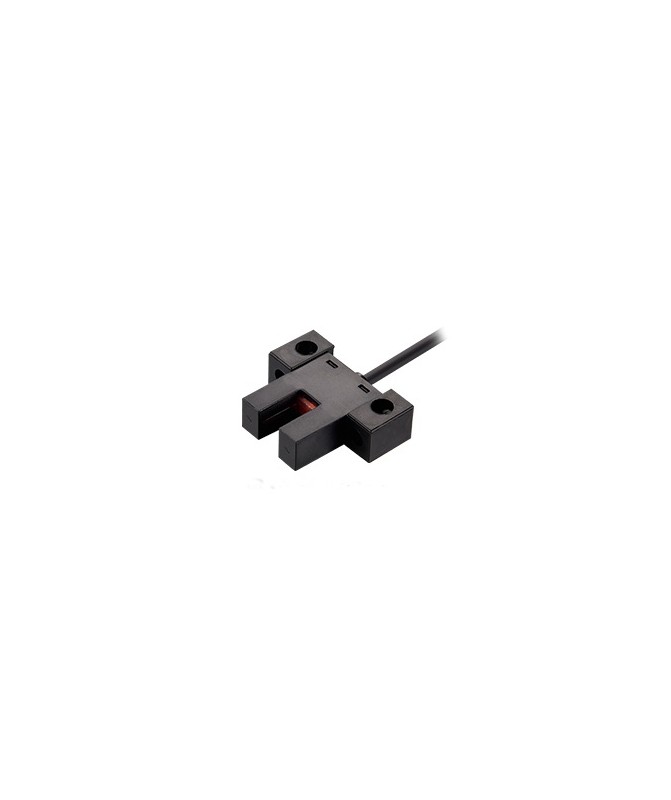

Photoelectric Fork Sensor - UXK45
Technical specifications:
Brand: MOTEE
Model: UXK45
Type: Photoelectric slot sensor
Slot width: 5 mm
Light source: Infrared LED 940 nm
Supply voltage: 5–24 VDC
Output: NPN Open Collector, NC and NO
Repeatability: ≤ 0.03 mm
Minimum object: ≥ 0.8 × 1.2 mm
Switching frequency: up to 3 kHz
Cable length: 2 m
Mounting: Screw mounting
Weight: 0.035 kg.
The MOTEE UX45 photoelectric fork sensor is a high-speed industrial sensor for non-contact detection of small parts, labels, holes, edges, and other objects in automated manufacturing processes. Thanks to its compact U-shaped design, the transmitter and receiver are housed in a single unit, ensuring easy installation, high accuracy, and reliable operation.
The sensor is suitable for packaging, labelling, and printing machines, automatic assembly lines, and positioning systems.
Advantages:
✔ High detection accuracy
✔ Fast response up to 3 kHz
✔ Compact fork-type design
✔ Easy installation and setup
✔ Reliable operation in industrial environments
✔ Suitable for high-speed production lines
Applications:
✔ Labelling machines
✔ Packaging lines
✔ Printing industry
✔ Part presence detection
✔ Positioning and counting of products
✔ Automated manufacturing systems
