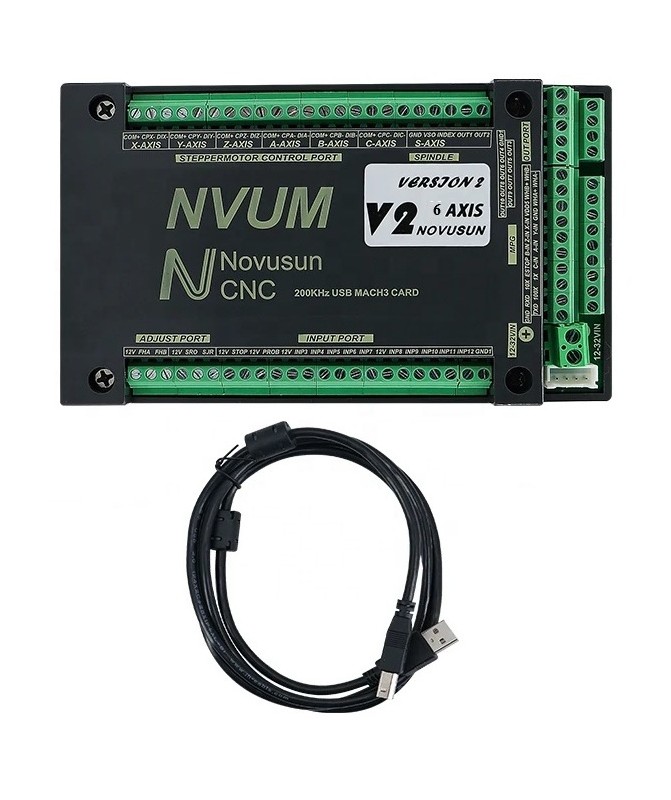

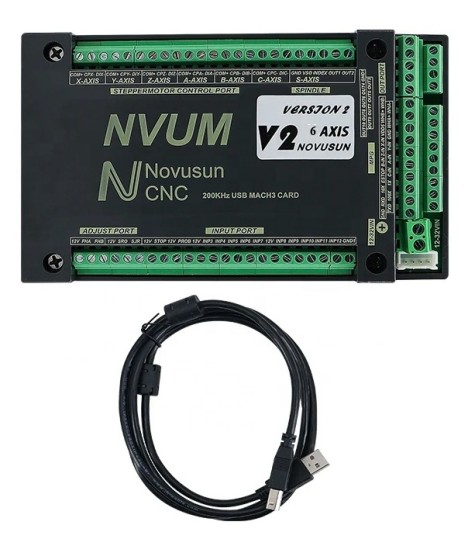

CNC Machine Controller - NVUM Mach3 - 6 Axis Controller Card – USB CNC
Supported axes: 6
Interface: USB
Maximum pulse signal frequency: up to ~200 kHz
Supply voltage: 12-32V
MPG (Handwheel) support: Yes
Supported software: Mach3
General-purpose opto-isolated output port: 10 pcs
General-purpose opto-isolated input port: 12 pcs
Spindle port: 0-10V (can also be used as PWM output)
Supply voltage: 12-32V
Motor type: Stepper motors – direction and step control (Pulse/Dir)
Applications: CNC routers, mini mills, engraving machines, automation
Weight: 0.350 kg.
The NVUM Mach3 controller card is suitable for small and medium CNC systems with support for stepper motors and connection to Mach3 software. It provides a USB interface for easy integration, multiple signal inputs and outputs, MPG (Manual Pulse Generator) support, as well as photoelectric isolation for protection against interference.
It is suitable for woodworking CNC machines, engraving mills, 3D routers and other applications where control of 6 axes with stepper motors is required.
Advantages:
Easy integration with the popular Mach3 software — suitable for hobby and industrial CNC equipment
High pulse signal speed, allowing for more precise and faster control
Photoelectric isolation for protection against electromagnetic interference
Support for 6 axes — flexible use
Support for Manual Pulse Generator (MPG) for precise manual control
