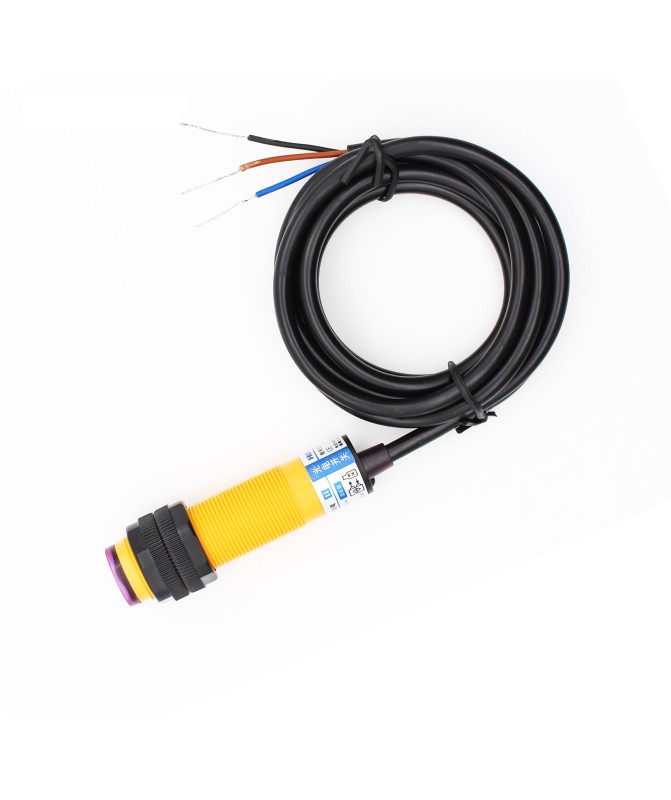

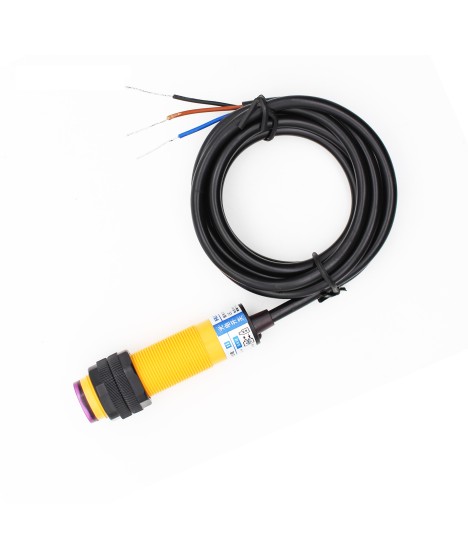

Photoelectric Sensor E3F-DS30P1 – PNP, NO, Diffuse, 30 cm, M18, 6–36 V DC, IP67

Photoelectric Sensor E3F-DS30P1 – PNP, NO, Diffuse, 30 cm, M18, 6–36 V DC, IP67

Technical specifications:

Model: E3F-DS30P1

Sensor type: Photoelectric, diffuse (reflective) detection

Output: PNP, 3-wire, normally open (NO)

Supply voltage: DC 6-36 V

Maximum output/load current: up to ~300 mA

Detection distance: up to ~30 cm (≈300 mm) with opaque object

Response time / switching frequency: response time ≤ ~1.5 ms, frequency ~300 Hz

Housing / mounting: M18 × 1 thread, Ø18 mm housing

Operating temperature: approx. -30 °C to +65 °C (non-condensing)

Protection rating: approx. IP67 (dust/water resistant)

Sensing object: Opaque object – suitable for detecting standard materials.

Weight: 0.065 kg.

€13.20 pcs
Tax included

The photoelectric sensor E3F-DS30P1 is a high-quality industrial diffuse reflective sensor designed for object detection via infrared beam reflection. The model features a PNP, normally open (NO) output, making it ideal for integration into internal automation, conveyor lines, and control systems. The sensor has an M18 housing with an Ø18 mm mounting thread and is designed for DC (6-36 V) power supply and operation under industrial conditions.

It is suitable for applications such as object control on belts, automatic sorting systems, robotic assembly lines, presence detection, and more. Thanks to its compact housing and reliable PNP output, it ensures fast response and easy integration into modern systems.

Advantages:

Diffuse reflection type — no need for a reflector or additional optics.

PNP NO output — easy integration with many controllers and systems.

Large detection distance (~30 cm) — suitable for flow systems.

Compact M18 housing — convenient for installation in limited spaces.

High protection rating (IP67) and wide temperature range — suitable for industrial conditions.
