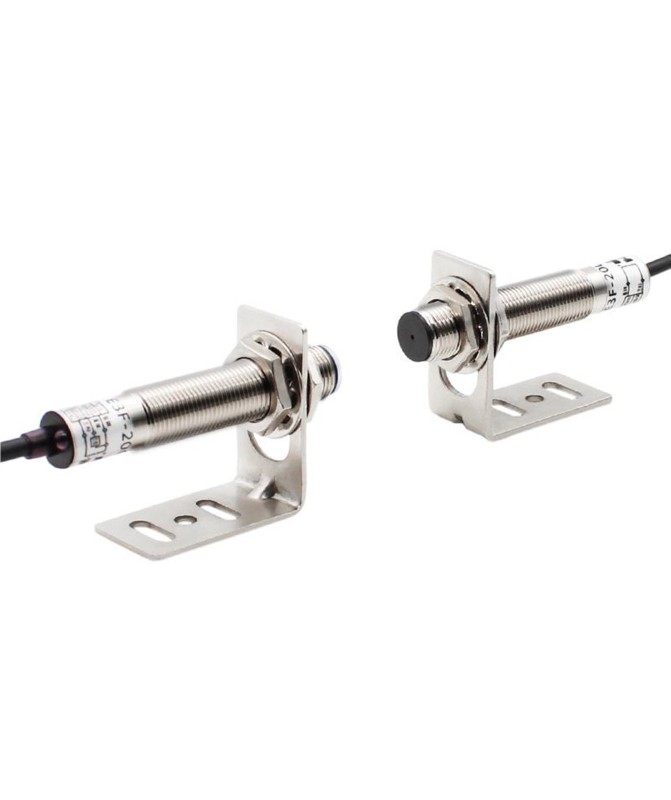

Photoelectric Sensor E3F-20P2-20L – PNP, Normally Closed (NC), 20 m, M12, 6–36V DC

Photoelectric Sensor E3F-20P2-20L – PNP, Normally Closed (NC), 20 m, M12, 6–36V DC

Technical specifications:

- Model: E3F-20P2-20L

- Sensor type: Photoelectric, barrier type (Emitter/Receiver)

- Output type: PNP, 3-wire

- Output function: Normally Closed (NC)

- Supply voltage: DC 6–36V

- Maximum output current: 300 mA

- Detection distance: up to 20 meters

- Housing diameter: M12

- Material: Metal (stainless steel)

- Cable length: 1.5 meters

- Operating temperature: -25°C to +55°C

- Protection rating: IP65

Wiring:

  • Brown – +V

  • Blue – GND

  • Black – signal

€7.44 pcs
Tax included

The E3F-20P2-20L photoelectric sensor is a reliable and highly sensitive industrial barrier-type sensor, consisting of a transmitter and a receiver.

This model operates with a PNP, normally closed (NC) output – when the infrared beam is interrupted by an object, the output signal is deactivated.

The sensor provides detection up to 20 metres, making it ideal for automation systems, production lines, object counting, and process control.

The housing is made of robust metal with an M12 thread and is protected against dust and moisture to IP65 standard, ensuring long life and stable operation.

Advantages:

  • High sensitivity and fast response
  • Reliable operation at distances up to 20 m
  • Compatible with PLC, Arduino, and industrial systems
  • Metal housing and IP65 protection
  • Suitable for various automation applications
