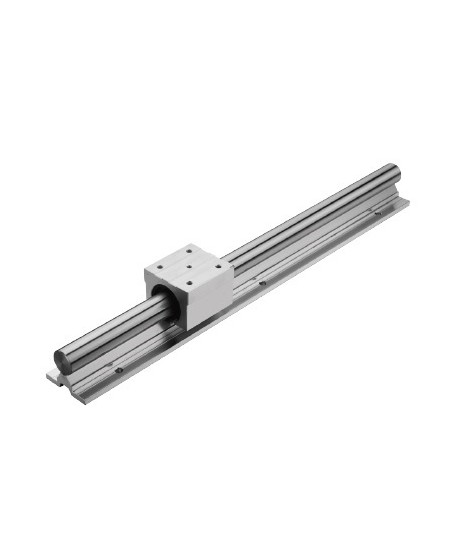

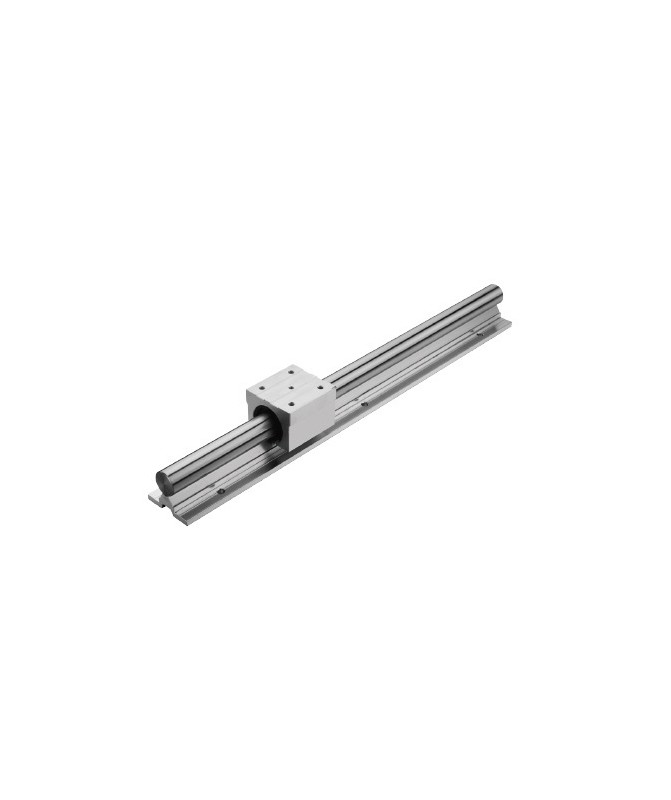

Linear Guide SBR C10
Diameter – Ø 10
E – 16
h – 18
B – 32
H – 13
T – 4
F – 12.5
X – 4.7
Y – 8.5
C – 22
P – 100
N – 20
S1 – Ø 4.5
S2 d1xd2xi – 5x9x5
Approximate weight per 1 m.: 1.300 kg
Maximum length - 4 m.
Cutting accuracy: ≤ 1 mm
Rails under 20 cm are not cut!
Linear guide rails and carriages are bearing components for linear motion, designed to provide free movement in one direction. They are designed with precise tolerances and withstand heavy loads, making them an ideal choice for applications where precise positioning of moving elements is required.
3D модел
1,21 MB
