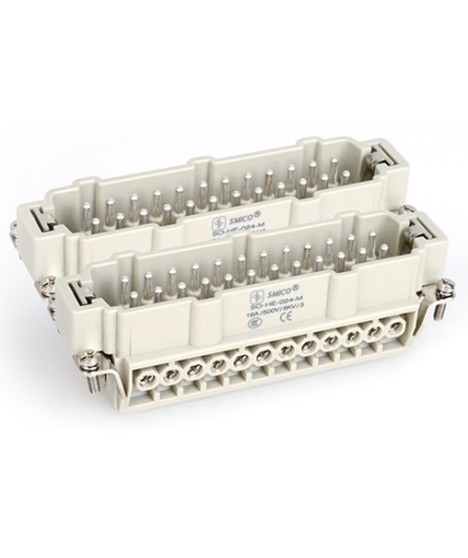

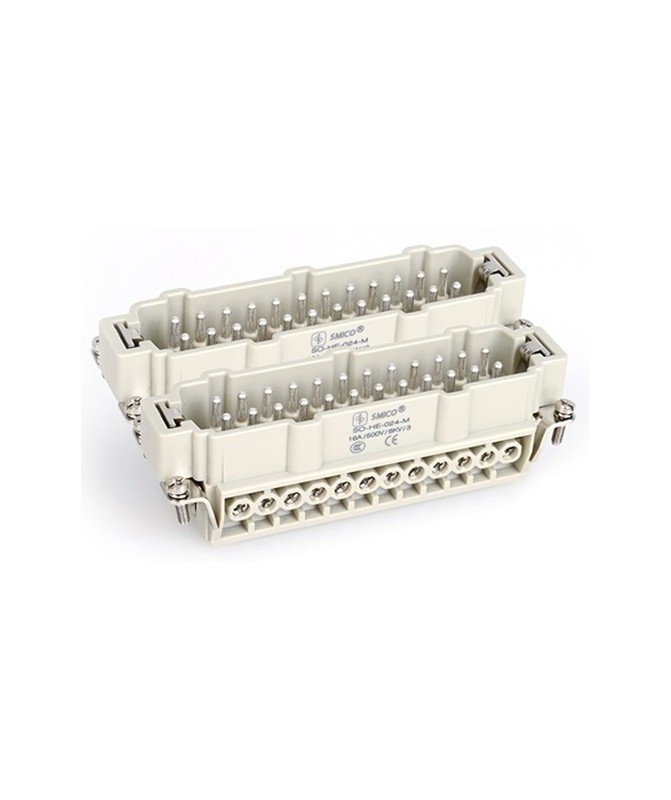

Male Insert for 48-Pin Industrial Connectors
Model: SO-HE-048-M
Operating voltage: 600V
Maximum pin current: 16A
Insulation resistance: 1010 ohms
Insert material: polycarbonate
Operating temperature: from -40 to +125 C
Flammability class according to UL-94: V0
Colour: white
Cable connection type: screw
Weight: 0.250 kg.
The offered inserts ensure reliable connection of loads up to 16A per pin and up to 600V working voltage. They are made of polymer material. They offer 48 screw terminals for cable installation, ensuring high connection security. The inserts are connected with a cable by means of screw tightening. The pins have a silver coating for improved contact.
Техническа спецификация
86,4 KB
