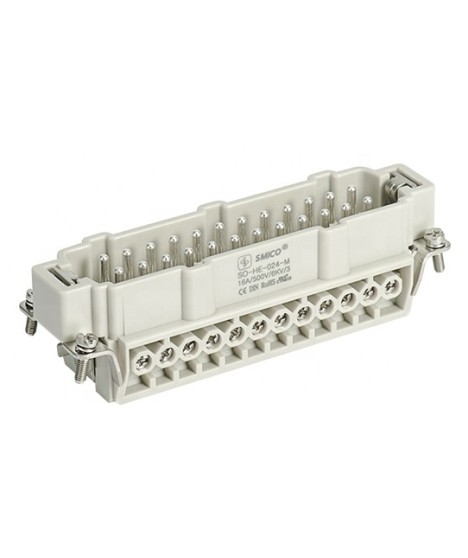

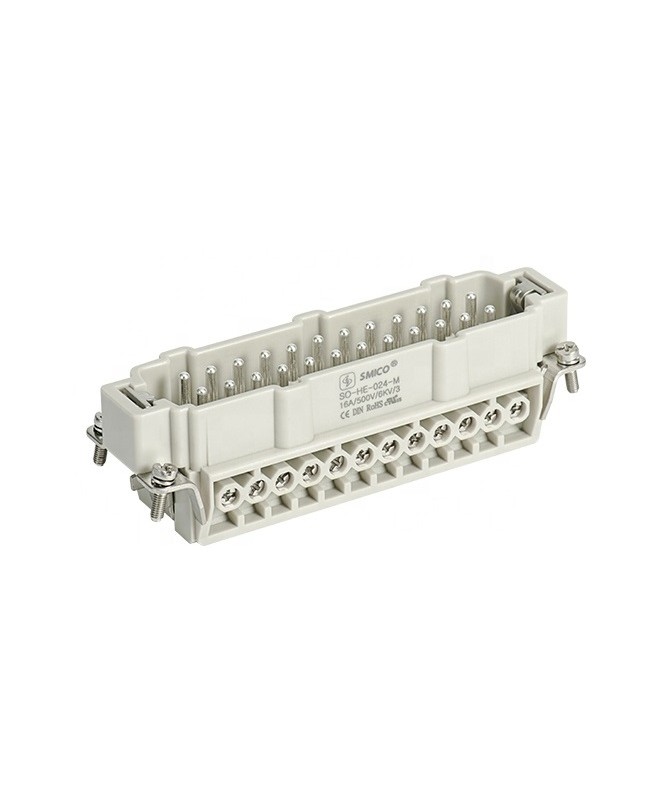

Male Insert for 24-Pin Industrial Connectors

Model: SO-HE-024-M

Operating voltage: 600V

Maximum pin current: 16A

Insulation resistance: 10¹⁰ ohms

Insert material: polycarbonate

Operating temperature: from -40 to +125 C

Flammability class according to UL-94: V0

Colour: white

Cable connection type: screw

Weight: 0.125 kg.

€13.50 pcs

Tax included

The offered inserts ensure reliable connection of loads up to 16A per pin and up to 600V working voltage. They are made of polymer material. They offer 24 screw terminals for cable installation, ensuring high connection security. The inserts are connected with a cable by means of screw tightening. The pins have a silver coating for improved contact.

Техническа спецификация 175,0 KB
