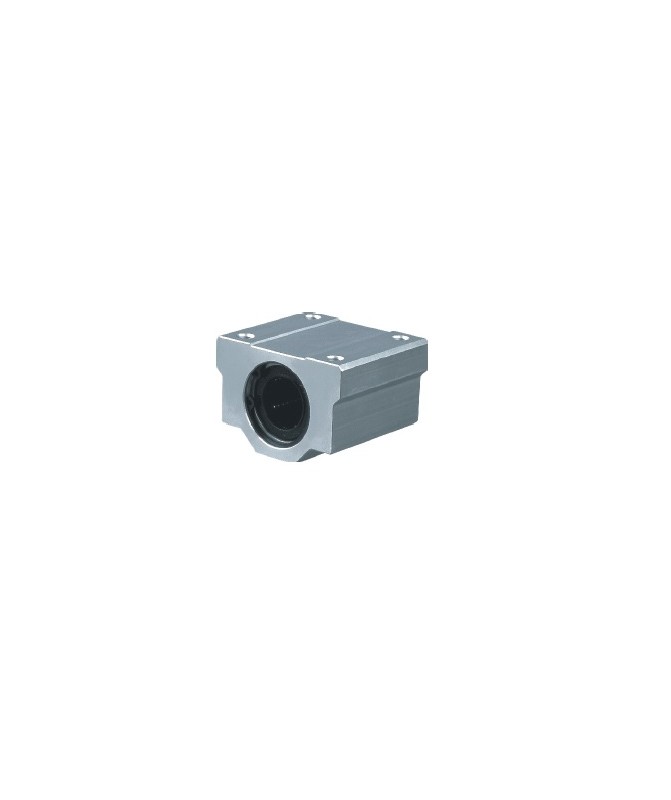

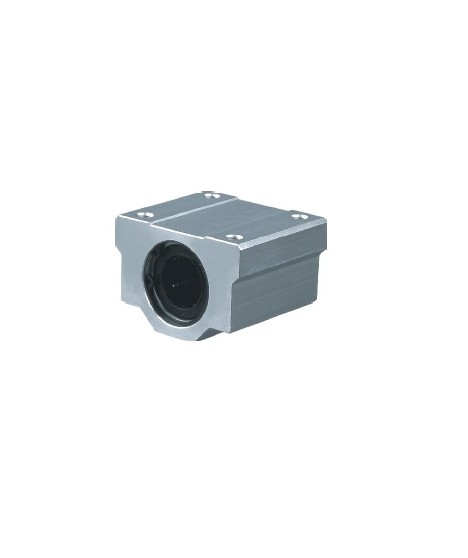

Linear bearing in bearing block SC25UU - EXLMSU25
Model – SC25UU
h – 26
D – 38
W – 76
H – 51.5
G – 42
A – 12
B – 54
E – 11
S1xe – M8 x 18
S2 – 7
C – 50
L – 67
Dynamic load – 98 kg
Static load – 157 kg
Weight – 0.600 kg
Linear bearing in housing SC20UU is a mechanical component used to facilitate linear motion with minimal friction. The bearing housing is a body that holds and supports the linear bearing.
SC20UU is part of a series of linear bearings often used in mechanical engineering, automation, and other applications where precise linear motion is required.
Key components and features of the linear bearing in housing SC20UU:
- Housing: Made of high-strength aluminium, providing stability and resistance to loads.
- Bearing: The linear bearing inside the housing contains ball or roller bearings that ensure smooth and precise movement along linear guides.
- Mounting holes: The SC20UU housing has holes or slots for easy mounting to various structures and machines.
SC20UU is used in combination with linear guides (shaft) with a diameter of 20 mm, providing reliable and stable movement along the axis of the guides.
This type of bearing housing is popular in various industrial and DIY applications due to its easy installation and efficiency.
