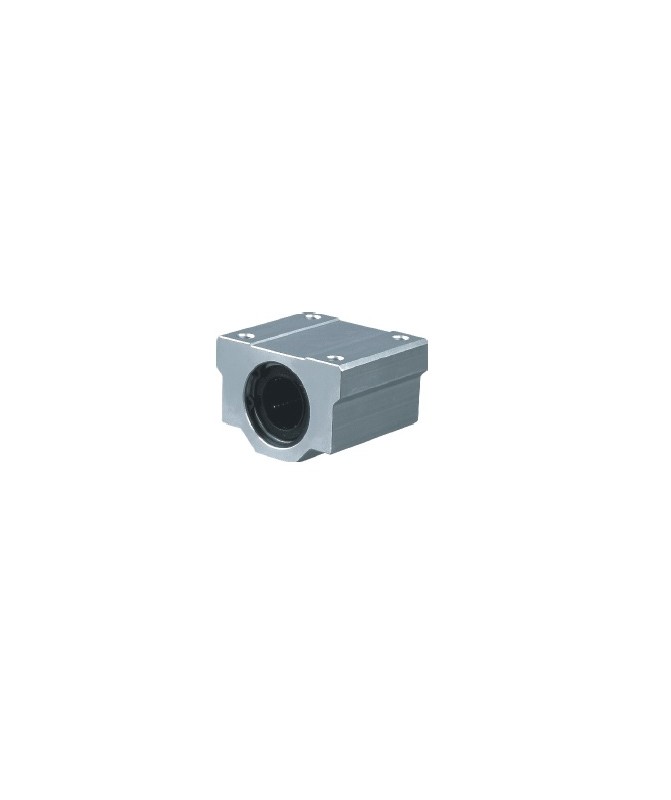

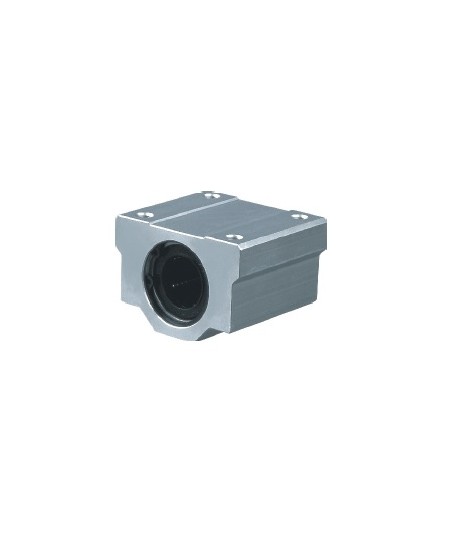

Linear bearing in bearing block SC 8UU - EXLMSU8
Model – SC8UU
h – 11
D – 17
W – 34
H – 22
G – 18
A – 6
B – 24
E – 5
S1xe – M4 x 8
S2 – 3.4
C – 18
L – 30
Dynamic load – 27 kg
Static load – 39 kg
Weight – 0.052 kg
The SC8UU linear bearing in a bearing block is a mechanical component used to facilitate linear motion with minimal friction. The bearing block is a housing that holds and supports the linear bearing.
SC8UU is part of a series of linear bearings often used in mechanical engineering, automation, and other applications where precise linear motion is required.
Key components and features of the SC8UU linear bearing in a bearing block:
- Housing: Made of high-strength aluminium, providing stability and resistance to loads.
- Bearing: The linear bearing inside the housing contains ball or roller bearings that ensure smooth and precise movement along linear guides.
- Mounting holes: The SC8UU housing has holes or slots for easy mounting to various structures and machines.
SC8UU is used in combination with linear guides (shaft) with a diameter of 8 mm, providing reliable and stable movement along the axis of the guides.
This type of bearing block is popular in various industrial and DIY applications due to its easy installation and efficiency.
