Linear Guiding Systems

Model – LMK10L

Ball rows – 4

dr – 10

D – 19

L – 55

D1 – 40

H – 6

PCD – 29

K – 30

W – 25

A – 29

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 15

Radial clearance (max): -4

Dynamic load – 58 kg

Static load – 110 kg

Weight – 0.098 kg

Model – LMK12L

Ball rows – 4

dr – 12

D – 21

L – 57

D1 – 42

H – 6

PCD – 32

K – 32

W – 27

A – 32

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 15

Radial clearance (max): -4

Dynamic load – 81 kg

Static load – 157 kg

Weight – 0.110 kg

Model – LMK16L

Ball rows – 4

dr – 16

D – 28

L – 70

D1 – 48

H – 6

PCD – 38

K – 37

W – 34

A – 31

d1 x d2 x h – 4.5 x 7.5 x 4.1

Eccentricity (max) – 15

Radial clearance (max): -6

Dynamic load – 125 kg

Static load – 239 kg

Weight – 0.190 kg

Model – LMK20L

Ball rows – 5

dr – 20

D – 32

L – 80

D1 – 54

H – 8

PCD – 43

K – 42

W – 38

A – 36

F – 24

d1 x d2 x h – 5.5 x 9 x 5.1

Eccentricity (max) – 20

Radial clearance (max): -6

Dynamic load – 140 kg

Static load – 270 kg

Weight – 0.260 kg

Model – LMK30L

Ball rows – 6

dr – 30

D – 45

L – 123

D1 – 74

H – 10

PCD – 60

K – 58

W – 51

A – 49

F – 35

d1 x d2 x h – 6.6 x 11 x 6.1

Eccentricity (max) – 20

Radial clearance (max): -8

Dynamic load – 249 kg

Static load – 549 kg

Weight – 0.680 kg

W - 20                         N - 5.5

B - 15                          L1 - 18.9

L - 28.9                       Mxl - M 3x3

H - 10                         H2 - 1.8

B1 - 2.5                      Gn - Ø 1.4

H1 - 2                         C - 10

Weight - 0.020 kg.

Mounting bolt - M3/8

Dynamic load: 0.19 ton

Static load: 0.26 ton

This bellows protects the linear guide rail from dust and chips. Following the profile of the guide, it ensures both attachment to the rail and smooth movement when extending and retracting. The ends finish with Velcro on thickened plastic strips with the possibility of drilling and bolt mounting on your side.

Material – polymer

Colour - black

Length in extended state – 1 or 2 m.

Length in retracted state for 1 metre – 10.5 cm.

Length in retracted state for 2 metres – 19 cm.

Weight – 0.170 / 0.310 kg

This bellows protects the linear guide rail from dust and swarf. Following the profile of the guide, it ensures both attachment to the rail and smooth movement during extension and retraction. The ends finish with Velcro on thickened plastic strips with the possibility of drilling and bolt mounting on your side.

Material – polymer

Colour - black

Length in extended state – 1 or 2 m.

Length in compressed state for 1 metre – 10 cm.

Length in compressed state for 2 metres – 19 cm.

Weight – 0.220 / 0.400 kg

Material - Aluminium

Mounting bolt - M5

Weight - 0.300 kg.

Model: EX-7144

A – 48

B – 12

C – M 6

Material: high-quality plastic

Weight: 0.034 kg.

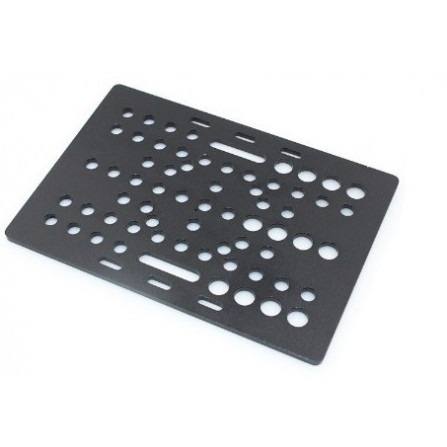

Material – aluminium 6063-T6

Colour – black

Thickness - 3 mm

Secondary material processing – yes

Model – SHF 10

Diameter – 10 mm

L – 43

T – 10

F – 5

B – 32

G – 20

H – 24

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.013 kg

Model – SHF 12

Diameter – 12 mm

L – 47

T – 13

F – 7

B – 36

G – 25

H – 28

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.020 kg

Model – SHF 13

Diameter – 13 mm

L – 47

T – 13

F – 7

B – 36

G – 25

H – 28

S – 5.5

Locking bolt – M5

Mounting bolt – M4

Weight – 0.020 kg
