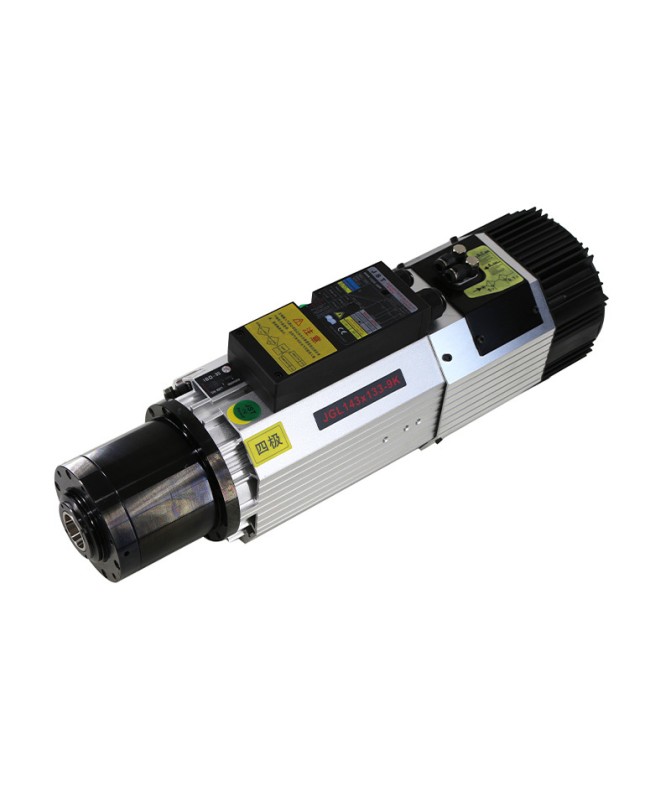

Spindle Motor JGLF71-30-24Z/9 – 9 kW ATC /Air Cooled/
Model: JGLF71-30-24Z/9
Power: 9.0 kW
Supply: 220/380 V
Current: ~19.5 A / 33.6 A
Speed: 12 000 – 24 000 rpm
Standard: ISO30 / ATC
Cooling: Air-cooled
Maximum torque: ~7.16 Nm
Weight: 31 kg
The JGLF71-30-24Z/9 CNC spindle with 9 kW power is a professional solution for heavily loaded CNC machines and milling centres with automatic tool change (ATC). The model uses the ISO30 standard, operates in the range of 12,000–24,000 rpm and features air cooling for easy maintenance and reliable operation.
The spindle is suitable for processing wood, MDF, HPL, plastics, aluminium and non-ferrous metals. Thanks to its high torque and stable construction, it is ideal for production CNC lines, furniture workshops and industrial applications.
