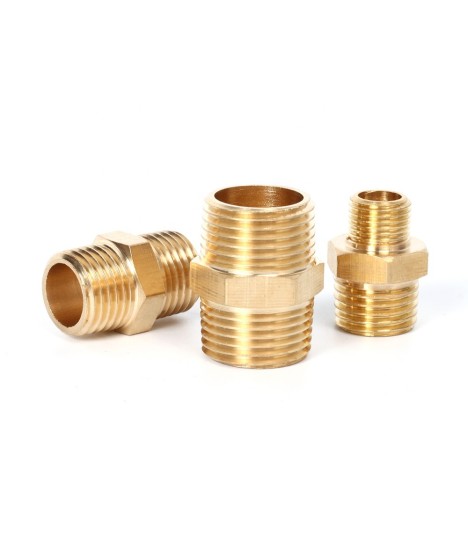

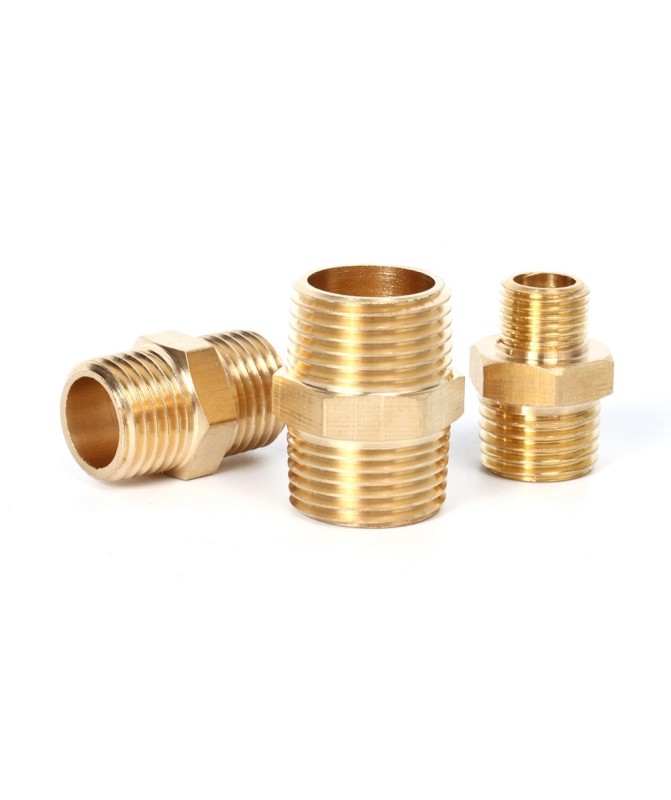

Pneumatic Male Fitting BW Series – Double External Thread
|
Model |
A |
B |
C |
D |
E |
F |
|
BW 01-01 |
PT1/8 |
PT1/8 |
7.5 |
7.5 |
4.5 |
10 |
|
BW 02-01 |
PT1/4 |
PT1/8 |
8.5 |
7.5 |
4.5 |
14 |
|
BW 02-02 |
PT1/4 |
PT1/4 |
8.5 |
8.5 |
4.5 |
14 |
|
BW 03-01 |
PT3/8 |
PT1/8 |
9.5 |
7.5 |
4.5 |
17 |
|
BW 03-02 |
PT3/8 |
PT1/4 |
9.5 |
8.5 |
4.5 |
17 |
|
BW 03-03 |
PT3/8 |
PT3/8 |
9.5 |
9.5 |
4.5 |
17 |
|
BW 04-02 |
PT1/2 |
PT1/4 |
10.5 |
8.5 |
4.5 |
21 |
|
BW 04-03 |
PT1/2 |
PT3/8 |
10.5 |
9.5 |
4.5 |
21 |
|
BW 04-04 |
PT1/2 |
PT1/2 |
10.5 |
10.5 |
4.5 |
21 |
|
BW 06-04 |
PT3/4 |
PT1/2 |
11.5 |
10.5 |
5 |
27 |
|
BW 06-06 |
PT3/4 |
PT3/4 |
11.5 |
11.5 |
5 |
27 |
|
BW 10-04 |
PT1 |
PT1/2 |
12.5 |
10.5 |
5.5 |
34 |
|
BW 10-06 |
PT1 |
PT3/4 |
12.5 |
11.5 |
5.5 |
34 |
|
BW 10-10 |
PT1 |
PT1 |
12.5 |
12.5 |
5.5 |
34 |
Technical specifications:
Series: BW
Type: Pneumatic straight fitting
Construction: Double external thread (male–male)
Material: Brass
Operating environment: Compressed air / pneumatic systems
Operating pressure: up to approx. 1.0 MPa
Operating temperature: 5°C to +60°C
Thread type: PT
Installation: Standard threaded connection
The BW series pneumatic fitting with double external thread is designed for reliable connection of components in compressed air and pneumatic installations. Made of high-quality brass, it ensures excellent mechanical strength, corrosion resistance and long service life.
The compact straight design allows for easy installation even in confined spaces, and the precise thread ensures a stable and leak-proof connection
Key advantages:
High strength and wear resistance
Excellent connection seal
Compact and reliable design
Corrosion resistance
Easy installation and removal
Suitable for industrial and service use
Applications:
Pneumatic systems and automation
Compressors and air installations
Machine building and industrial equipment
Production lines and workshops
Connecting valves, cylinders and pneumatic components
