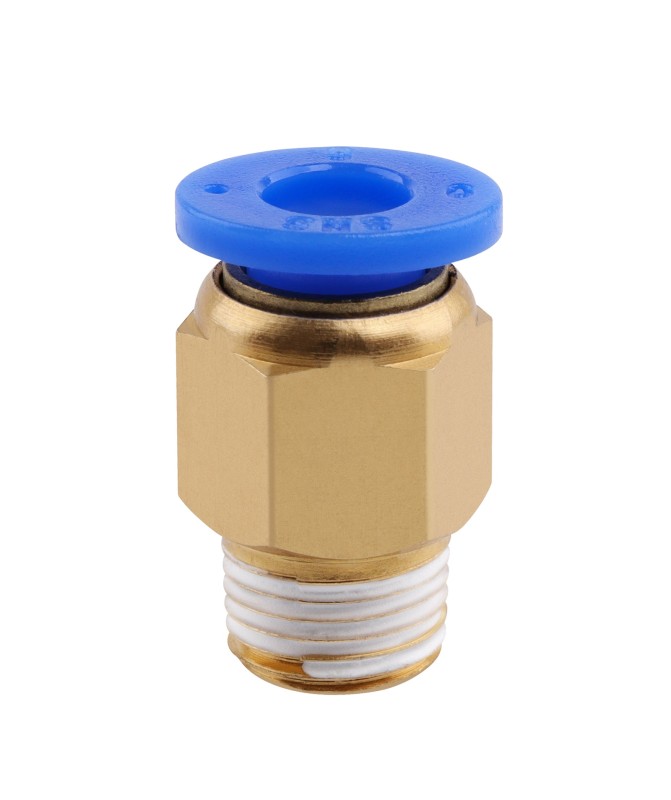

Pneumatic Quick Fitting SPC Series One-Touch
|
Model
|
ØD
|
R
|
A
|
B
|
H
|
|
SPC 4-GM5 |
4 |
M5 |
4.5 |
22 |
10 |
|
SPC 4-01 |
4 |
1/8" |
7 |
20.5 |
10 |
|
SPC 4-02 |
4 |
1/4" |
9 |
19 |
14 |
|
SPC 4-03 |
4 |
3/8" |
10 |
20 |
17 |
|
SPC 4-04 |
4 |
1/2" |
11 |
21 |
21 |
|
SPC 6-GM5 |
6 |
M5 |
4.5 |
22.5 |
12 |
|
SPC 6-01 |
6 |
1/8" |
7 |
22 |
12 |
|
SPC 6-02 |
6 |
1/4" |
9 |
22 |
14 |
|
SPC 6-03 |
6 |
3/8" |
10 |
21.5 |
17 |
|
SPC 6-04 |
6 |
1/2" |
11 |
23 |
21 |
|
SPC 8-GM5 |
8 |
M5 |
7 |
23 |
14 |
|
SPC 8-01 |
8 |
1/8" |
8 |
27 |
14 |
|
SPC 8-02 |
8 |
1/4" |
10 |
25 |
14 |
|
SPC 8-03 |
8 |
3/8" |
10 |
22 |
17 |
|
SPC 8-04 |
8 |
1/2" |
11 |
23.5 |
21 |
|
SPC 10-01 |
10 |
1/8" |
8 |
31 |
17 |
|
SPC 10-02 |
10 |
1/4" |
10 |
29 |
17 |
|
SPC 10-03 |
10 |
3/8" |
10 |
25 |
17 |
|
SPC 10-04 |
10 |
1/2" |
11 |
32.5 |
21 |
Technical specifications:
Series: SPC
Type: Pneumatic quick fitting (One-Touch, Push-In)
Configuration: Straight fitting with external thread
Material: Nickel-plated brass + technopolymer
Operating environment: Compressed air / vacuum
Operating pressure: approx. 0 – 0.9 MPa
Maximum pressure: 1.32 MPa
Operating temperature: 0°C to +60°C
Thread type: PT
Compatible hoses: PU, PA, PE, PVC pneumatic tubes
Installation: Quick connection without tools
Sealing: High tightness, leak protection
The SNS SPC One-Touch series pneumatic fitting is a high-quality quick connector for connecting pneumatic hoses to compressed air systems. The push-in design allows for easy and fast connection without tools, ensuring reliable sealing and a long service life. Made from nickel-plated brass and durable engineering plastic, the fitting combines strength, low weight, and excellent corrosion resistance. Suitable for industrial pneumatic systems, automation, compressor installations, machinery, and equipment.
Key advantages:
Quick installation and removal (push-in system)
Compact and lightweight design
Reliable sealing and leak resistance
Corrosion and mechanical load resistant
Suitable for industrial and service applications
Application:
Pneumatic systems and automation
Compressors and air installations
Mechanical engineering and industrial equipment
Production lines and service systems
