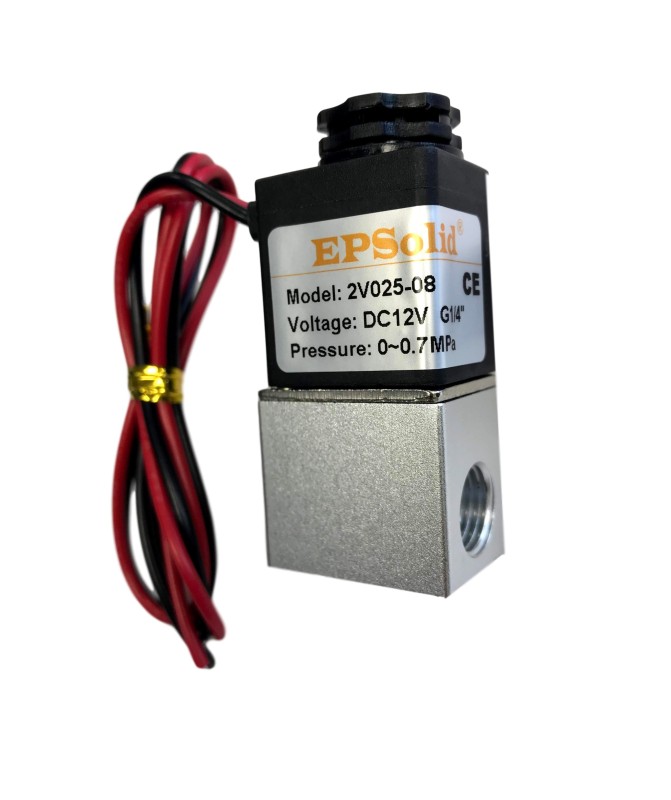

Solenoid Valve - 2V025-08
Valve type: 2-position, 2-way solenoid valve (2/2)
Orifice size: 2.5 mm
Connection size: G1/4 ''
Working fluid viscosity: < 20CST
Operating pressure: 0 - 6.91 atm
Max. Pressure: 9.87 atm
Operating temperature: from -5° C to + 80o C
Operating voltage: 12 V
Operating current: 0.5 A
Body material: Aluminium
Seal material: NBR (nitrile rubber) or other suitable material.
Weight: 0.135 kg.
Valve model 2V025-08 is a type of solenoid valve used for controlling air or gas flows. This model is commonly used in pneumatic control systems, automation, and various industrial applications. It is known for its reliability and efficiency in managing air or gas flow in different systems.
You might also like
Comments (0)
No customer reviews for the moment.
Valve type: 2-position, 2-way solenoid valve (2/2)
Orifice size: 2.5 mm
Connection size: G1/4 ''
Working fluid viscosity: < 20CST
Operating pressure: 0 - 6.91 atm
Max. Pressure: 9.87 atm
Operating temperature: from -5° C to + 80o C
Operating voltage: 12 V
Operating current: 0.5 A
Body material: Aluminium
Seal material: NBR (nitrile rubber) or other suitable material.
Weight: 0.135 kg.
