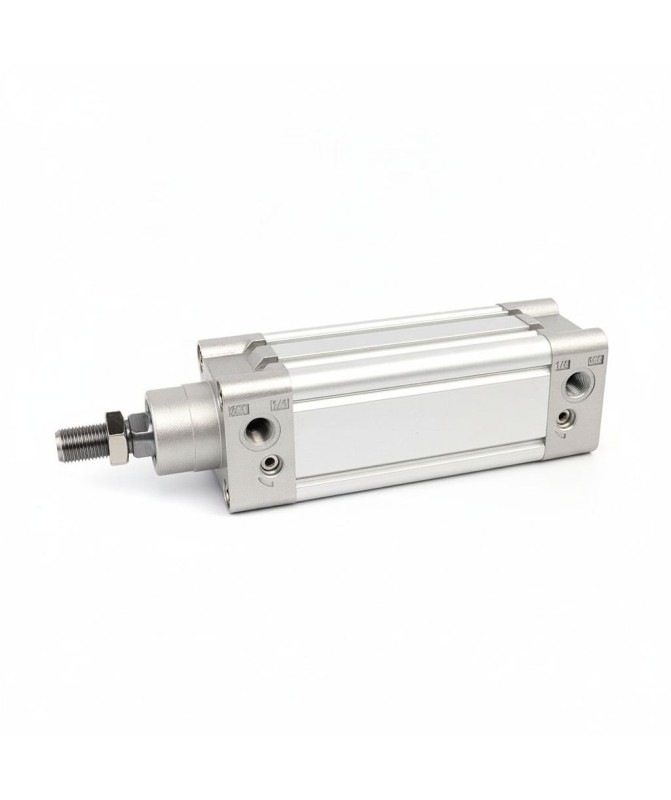

Pneumatic Cylinder Series DNC 63 - ISO6431 Standard (Double Acting)
|
Piston bore d
|
AM
|
B
|
D2
|
D5
|
D7
|
E
|
EE
|
J3
|
J4
|
KK
|
L2
|
L3
|
L4
|
L5
|
L6
|
L7
|
L8
|
SW1
|
SW2
|
VD
|
WH
|
ZB
|
|
63
|
32 |
45 |
20 |
56.5 |
M8 |
75 |
3/8 |
12 |
10 |
M16x1.5 |
54 |
87 |
4 |
36 |
17 |
7 |
10 |
17 |
8 |
27 |
37 |
157.5 |
Main specifications:
Series: DNC
Piston bore: 63 mm
Type: Pneumatic cylinder (Air Cylinder)
Standard: ISO 6431
Action: Double Acting
Operating medium: Filtered compressed air
Body material: Aluminium alloy
Operating pressure: approx. 0.1 – 1.0 MPa
Maximum pressure: approx. 1.35 MPa
Operating temperature: approx. -5°C to +70°C
Movement speed: 50 – 800 mm/s
Cylinder stroke: This product is available in various configurations up to 2000 mm.
✔ Custom manufacturing available for strokes up to 2000 mm, as well as non-standard sizes according to your specific requirements.
If you require a size not included in the standard offerings, please contact our team or enter the desired length in the field below and add a model close to yours to the cart!
DNC series pneumatic cylinders are industrial linear motion cylinders compatible with ISO 6431 standard. They are designed for reliable operation in automated systems, production lines, and machinery.
The cylinder is double-acting – compressed air drives the piston both during extension and retraction, allowing for better movement control and greater force.
The barrel is made of aluminium alloy, ensuring high strength, low weight, and good corrosion resistance. Thanks to their standard design, DNC series cylinders can be easily combined with various mounting accessories and sensors.
Applications:
industrial automation
packaging machines
robotic systems
production lines
machining equipment
transport and positioning systems
