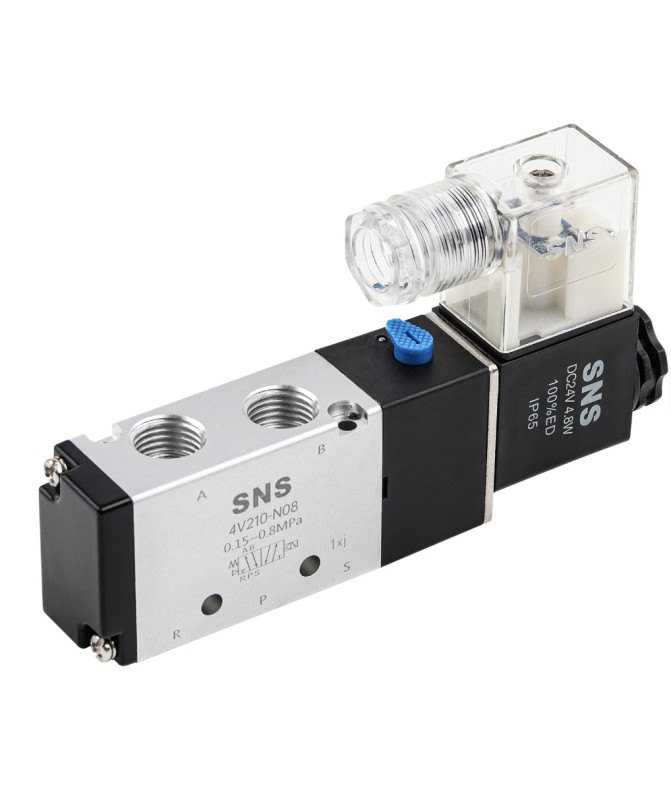

Electromagnetic Pneumatic Valve 4V210-08/AC220V
|
Model
|
A
|
B
|
C
|
D
|
E
|
|
4V210-08
|
G1/8 |
G1/4 |
21 |
21 |
3 |
Technical specifications:
Model: 4V210-08
Valve type: 5/2 pneumatic solenoid valve
Voltage: AC 220V
Connection: PT 1/4
Exhaust ports: 1/8
Operating pressure: ~ 0.15 – 0.8 MPa
Maximum pressure: up to 1.0 MPa
Body material: Aluminium alloy
Seals: NBR
Operating medium: Filtered compressed air
Temperature range: from 0°C to +60°C
Control type: Solenoid
Weight: 0.220 kg.
4V210-08 (AC220V) is an electromagnetic pneumatic valve designed for controlling compressed air flow in automated pneumatic systems. The valve is a 5/2 type (5 ports, 2 positions) and allows precise control of pneumatic cylinders, tools, and industrial equipment.
The model operates with an AC 220V coil and is made of aluminium alloy, ensuring high durability, reliable sealing, and a long service life. Valves from the 4V210 series are widely used in automation, mechanical engineering, and production lines.
What does the model mean?
4V → series of electromagnetic pneumatic valves
2 → two-position valve
10 → body size
08 → 1/4″ port
Key advantages:
✔ Fast response and stable operation
✔ Suitable for industrial automation
✔ Compact and reliable design
✔ Easy installation in pneumatic systems
✔ Long service life
✔ Low energy consumption
Applications:
✔ CNC machines and automation
✔ Pneumatic cylinders and actuators
✔ Production lines
✔ Robotic systems
✔ Compressor installations
