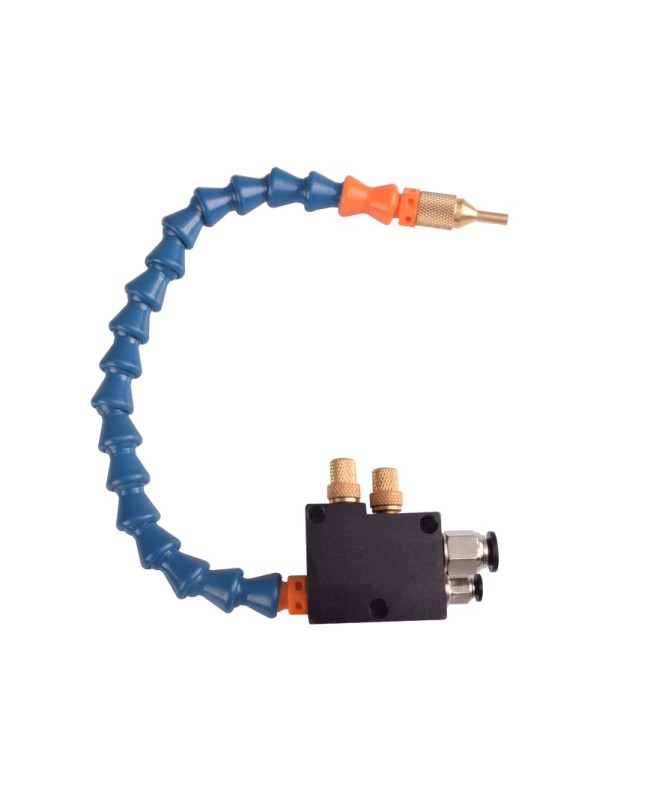

Coolant Hose Nozzle S-BPV-03, 300 mm
Technical specifications:
Model: S-BPV-03
Type: Pneumatic cooling/lubricating spray (mist coolant system)
Operating air pressure: 0.1 – 0.8 MPa
Liquid viscosity: 0 – 68 cSt
Operating medium: Compressed air + coolant
Total length: 30 cm
Hose connection: 1/4"
Functions: Simultaneous cooling, lubrication and chip blowing
Recommendation: Use clean, non-corrosive liquids
Nozzle S-BPV-03 is a pneumatic system for cooling, lubrication, and cleaning during machining. It creates a fine mist of coolant that reduces friction, dissipates heat, and improves the quality of the machined surface.
The system is suitable for CNC machines, milling machines, lathes, drilling machines, and other industrial applications, extending tool life and increasing the efficiency of the manufacturing process.
Key advantages:
✔ Reduces friction and temperature during machining
✔ Extends tool life
✔ Improves the quality of the machined surface
✔ Saves coolant and costs
✔ Increases machining speed and efficiency
✔ "Mist coolant" type systems provide targeted cooling and lubrication of the cutting zone, improving machining quality and machine efficiency.
Applications:
CNC milling machines, lathes, and machining centres
Metalworking machines
Engraving, drilling, and milling
Industrial automation
Manufacturing and service workshops

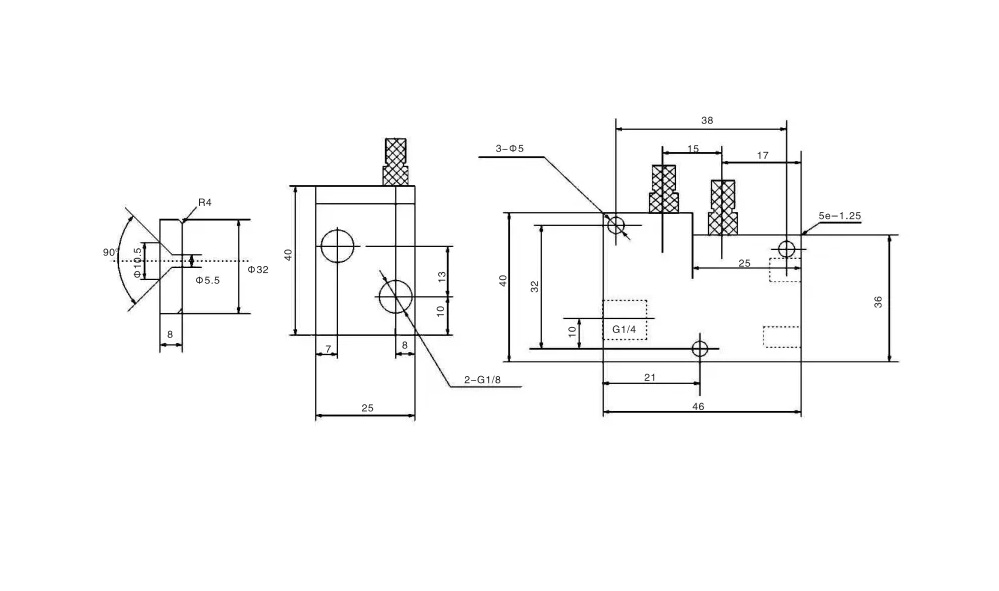

Чертеж
