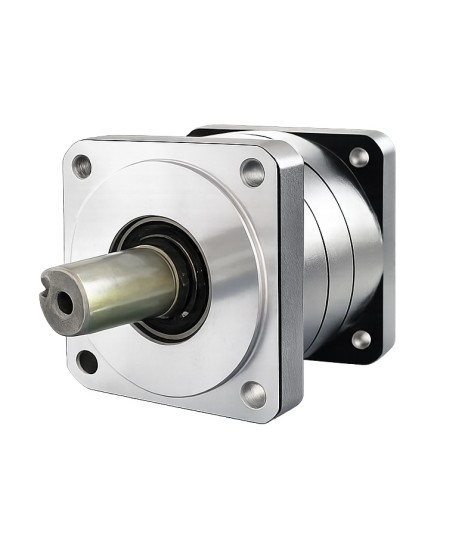

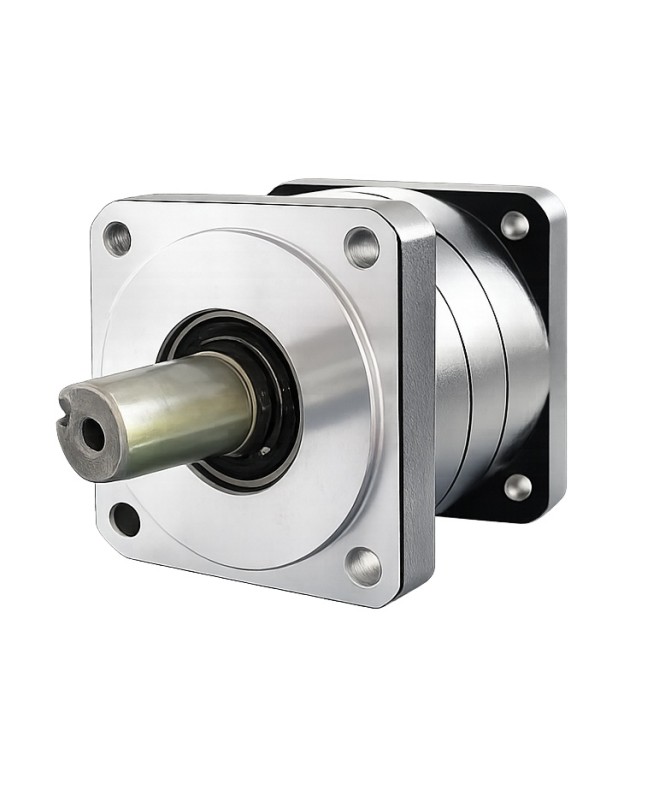

Planetary Gearbox PX80 – 1:10 / 1:20 / 1:100 for Servo/Stepper Motor Nema 32

Planetary Gearbox for Nema 32 Motor - PX 80

Technical specifications:

Series: PX80 (NEMA32)

Flange: 80 mm (for servo/stepper motor)

Type: Planetary gearbox

Gear ratios:

1:10

1:20

1:100

Input shaft: 16 mm

Output shaft: 16 mm

Mounting: direct to stepper motor

Input shaft length: ~ 30 mm

Efficiency: up to ~90–95%

Noise level: ≤62 dB

Input speed: up to ~6000 rpm

Backlash: low

Construction: steel gears + aluminium housing

Model

Gear ratio

Application

Rated torque

Length

Weight

PX80 - 1:10

Medium

Balance between speed and torque

~50–80 Nm

86 mm

1.550 kg

PX80 - 1:20

High

Greater force and better control

~80–100 Nm

95 mm

1.900 kg

PX80 - 1:100

Very high

Maximum torque and precision

up to 300 Nm

110 mm

2.300 kg

Model: 1:10
€78.00
Tax included

The PX80 planetary gearbox is a precision mechanical reducer designed for mounting to stepper or servo motors with an 80 mm flange (most commonly NEMA32). It reduces rotational speed and increases torque, providing better control, accuracy, and stability during movement.

PX80 series gearboxes are widely used in CNC machines, automation, and robotics, where high efficiency and low backlash are required. The planetary design allows for even load distribution and compact dimensions.

Key advantages:

✔ Increases motor torque

✔ Improves positioning accuracy

✔ Low backlash – suitable for CNC

✔ High efficiency and smooth operation

✔ Compact design

✔ Long service life

Applications:

✔ CNC machines and routers

✔ Automated production lines

✔ Robotics and manipulators

✔ Linear drives

✔ 3D printers and engineering systems
