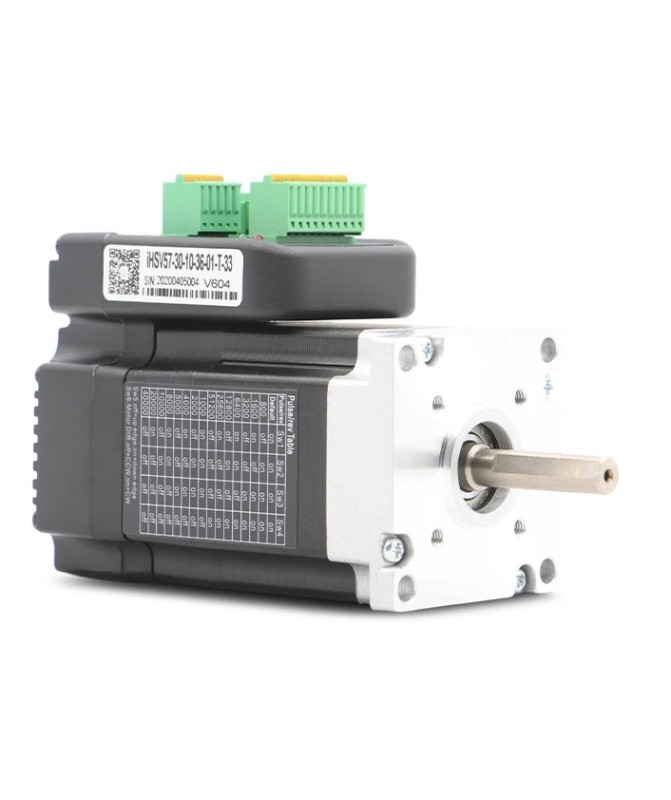

Integrated Nema 23 Servo Motor with Driver – Version V6

Integrated Nema 23 Servo Motor with Driver – Version V6

Technical specifications:

  • Model: NEMA23 (standard size 57 x 57 mm)

  • Rated current: 3.5A

  • Phases: 3

  • Poles: 8

  • Winding resistance: 1.19±10%ohms

  • Winding inductance: 0.58±20%mH

  • Power: 100 W

  • Speed: up to 3000 rpm

  • Torque: 0.29 Nm (rated)

  • Maximum current: 6.0A

  • Motor type: DC servo motor

  • Integrated driver: Yes, V6 version with improved stability and speed

  • Power supply: 36VDC

  • Control: PWM Step/Direction, RS232/RS485

  • Interface: limit switches, alarm output, encoder

  • Mounting: NEMA23 standard flange, suitable for CNC machines, robots and automation

  • Shaft size: Ø8
€153.36 pcs
Tax included

This high-efficiency integrated servo motor combines power, precision and compactness, making it an ideal choice for industrial and hobby applications. The model features a built-in driver (version V6), which facilitates installation and reduces the need for external components.

Applications:

  • CNC machines

  • Small industrial robots

  • 3D printers and laser engravers

  • Automated conveyors

  • Packaging and labelling machines

  • Precision positioning in mechatronic systems

Advantages:

  • Compact design with built-in driver

  • Easy installation and connection

  • High reliability and positioning accuracy

  • Less wiring thanks to integrated electronics

  • Quiet and smooth operation at high speeds
Ръководство за употреба 2,52 MB
