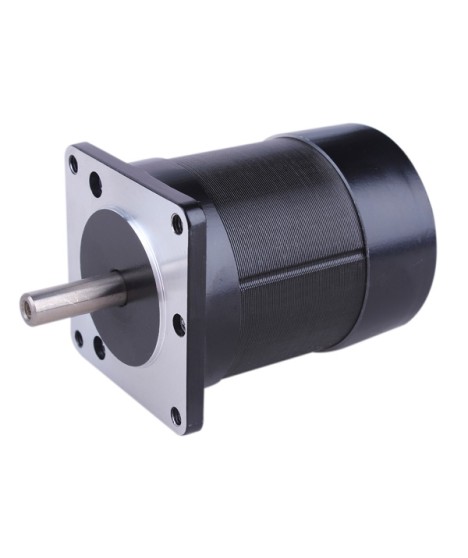

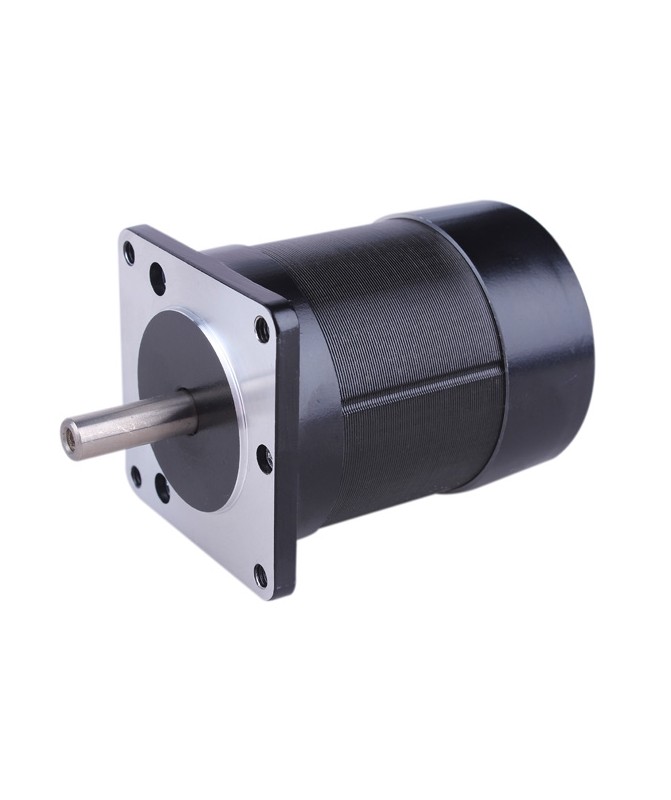

BLDC Motor Nema 23 - 0.22Nm - 57BL S 002

BLDC motors operate on the principle that a rotating magnetic field is generated by the stator (the stationary part of the motor), while permanent magnets are located on the rotor (the rotating part). Unlike traditional brushed motors, BLDC motors use an electronic circuit for commutation, which controls the current flow to the stator windings, eliminating the need for brushes. The brushless DC motor (BLDC motor) has a number of advantages and features that make it popular in various fields.

Control:

Controlling BLDC motors requires the use of special controllers that ensure switching of the current in the stator windings in the required sequence. This is achieved with the help of microcontrollers and built-in algorithms that monitor the rotor position using Hall sensors or sensorless methods, such as back EMF.

BLDC motors represent a modern solution for various applications requiring high efficiency, reliability, and durability. Their popularity continues to grow due to advances in control technologies and lower manufacturing costs.
