Model – EXDZS55
A – 55 mm
B – 48 mm
C – 5 mm
H – 31 mm
Torque – 1.3 Nm
Voltage - 24V
Weight – 0.335 kg.

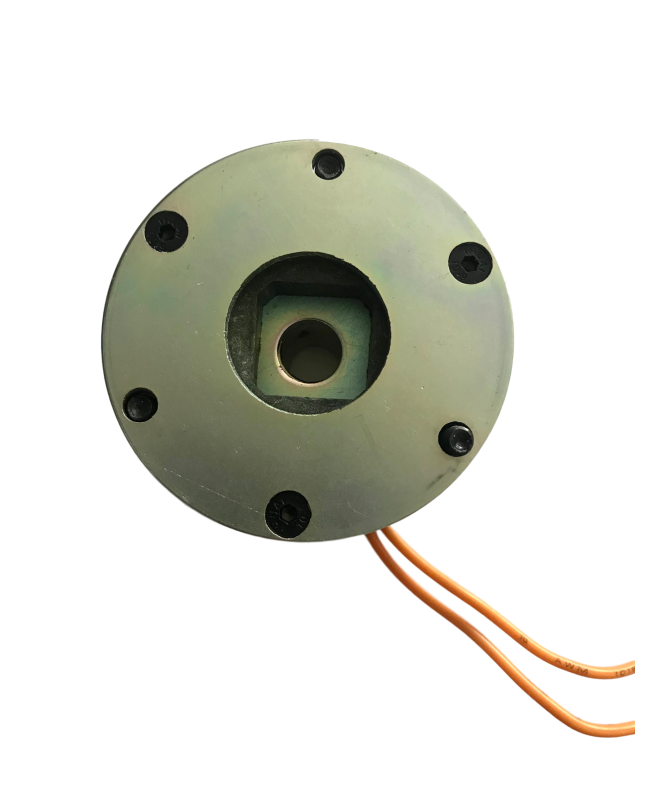

The electric brake is a device used to stop or hold a motor in a specific position. This is particularly important in applications where it is necessary to prevent motor movement when it is switched off or when it needs to be maintained in a specific position.
Key features:
- Position control - They help maintain the motor in a precisely defined position, which is important for high-precision applications.
- Prevention of movement - The brakes prevent unwanted motor movement during braking or when the power supply is switched off.
- Usage - They are particularly useful in automated systems, CNC machines, robotics, and other applications where reliability and precision in controlling the motor's position are required.
This type of brake helps increase the reliability and accuracy of systems using motors, while simultaneously reducing the risk of unwanted movement or loss of position.
