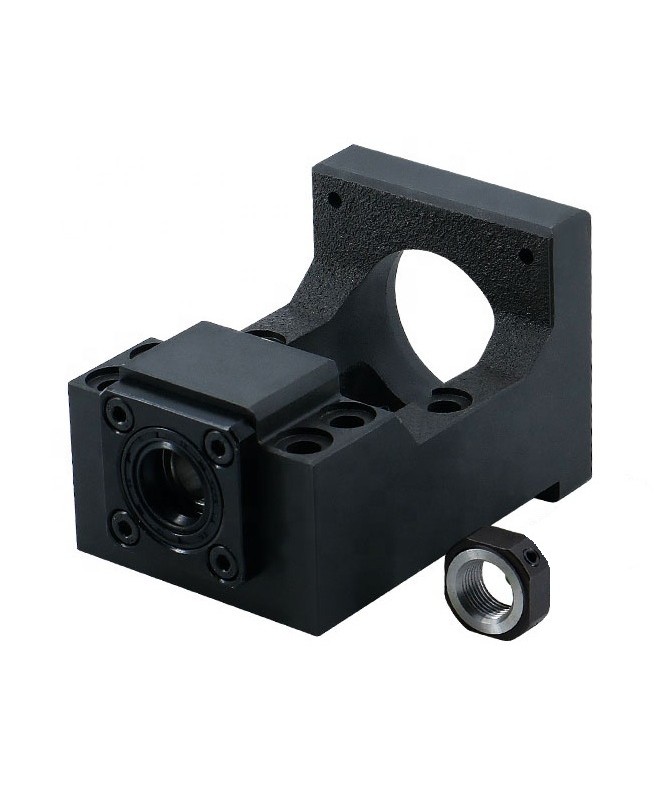

Integrated Mount for Nema 23 Motor and Ø16 Ball Screw - HM12-57

Model: HM12-57

Compatible motors: NEMA 23 stepper motor

Compatible ball screw: C7 (e.g. SFU1605, 1610, 1620, etc.)

Support shaft diameter: Ø12 mm

Motor mounting hole: 57 mm (HM12-57)

Bearing type: Precision radial-axial bearing for screw spindles

The integrated bracket HM12-57 is designed to connect a stepper motor (NEMA 23) with a ball screw of class C7. This model is designed to ensure high coaxiality and a stable mechanical connection, minimising vibrations, noise and deviations during movement. Thanks to the built-in bearing module and precision manufacturing, the bracket is ideal for CNC machines, linear modules, automation and robotic systems. Made of black steel with an anodised coating, it guarantees durability and resistance under heavy loads.

Advantages:

Precise centring of the motor and ball screw

Extremely stable construction with high coaxiality

Minimises vibrations and ensures smooth movement

Easy installation with pre-drilled holes

Suitable for professional CNC and industrial systems
