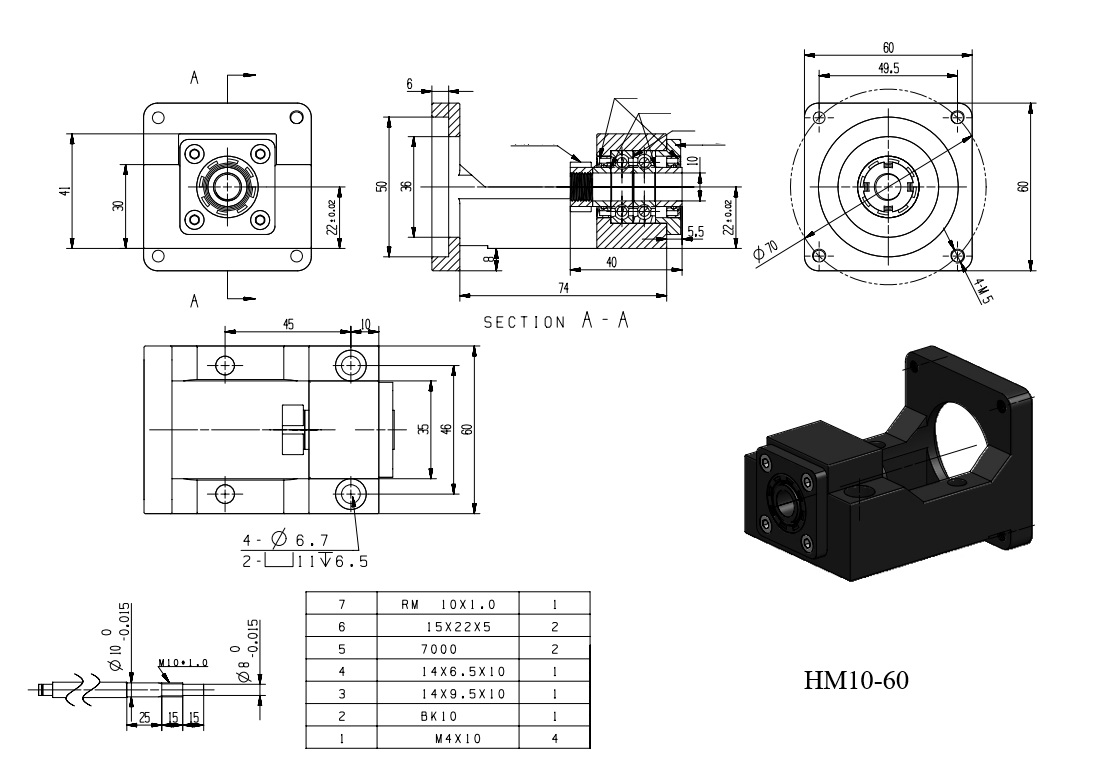

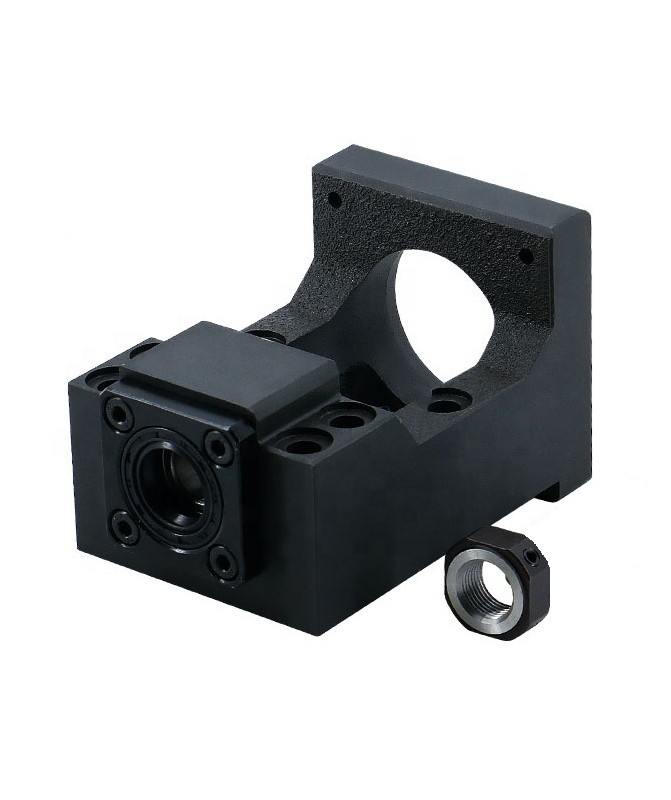

Integrated Mount for NEMA 24 Motor and Ø12 Ball Screw - HM10-60

The integrated stepper motor mount is a high-precision mounting component designed to connect a ball screw with a NEMA 24 type stepper motor.

The HM10-60 model provides a stable and precise mechanical connection between the motor and the screw mechanism, ensuring high coaxiality and minimal backlash during rotation. The mount is made of black steel with an anodized finish, which guarantees excellent strength and resistance to vibrations and wear.

Advantages:

Precise centring and stable connection between the motor and the screw

Minimises vibrations and mechanical deviations

Easy installation with ready-made threaded holes

High coaxiality and long service life

Suitable for CNC machines, 3D printers, robotic systems and automated linear modules
