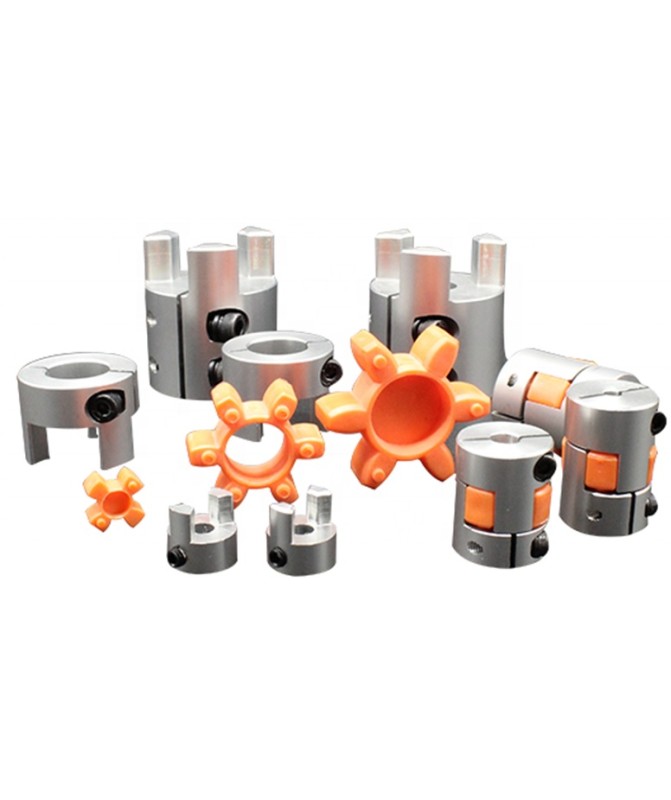

JM Elastomeric Coupling, 3 Jaw Couplings

3 JAW Couplings - EX3JAW

A – 40 mm

B – 30 mm

A 1 – 25 mm

A 2 – 11 mm

A 3 – 6.75 mm

C - M 4

RPM - 18000

Torque - 16

Clamping - collet

Weight - 0.058 kg

Shaft diameters (B1 and B2) - 6, 6.35, 8, 10, 12, 14, 16

We offer combinations of all types!

Model: 6.35 x 6.35

€6.72

Tax included

Motor couplings are mechanical devices used to connect the shafts of the motor and the load it drives.

The main functions of the coupling include:

1. Torque transmission: The coupling transmits torque from the motor to the driven mechanism or device.

2. Misalignment compensation: It can compensate for small misalignments between the motor and load shafts, ensuring smooth and trouble-free motion transmission.

3. Vibration damping: Some couplings have elements that help reduce vibrations and shocks that may occur during operation, protecting both the motor and the driven mechanism.

4. Easy installation and removal: They allow easy connection and disconnection of the shafts, facilitating system servicing and maintenance.

5. Precision: For stepper motors, precision is important, so couplings must ensure precise motion transmission without backlash or distortion.

The choice of a suitable coupling depends on the specific requirements of the application and the characteristics of the motor and load.

3D модел 1,36 MB
