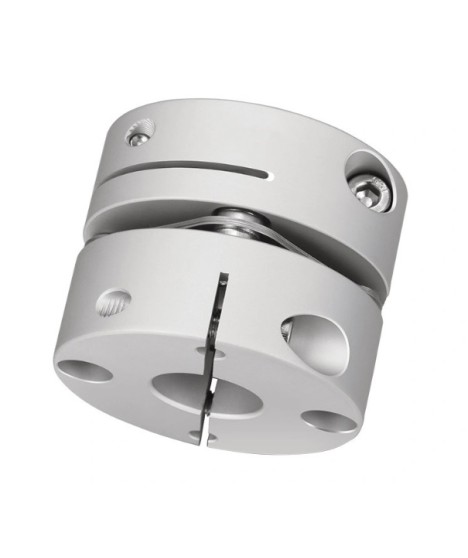

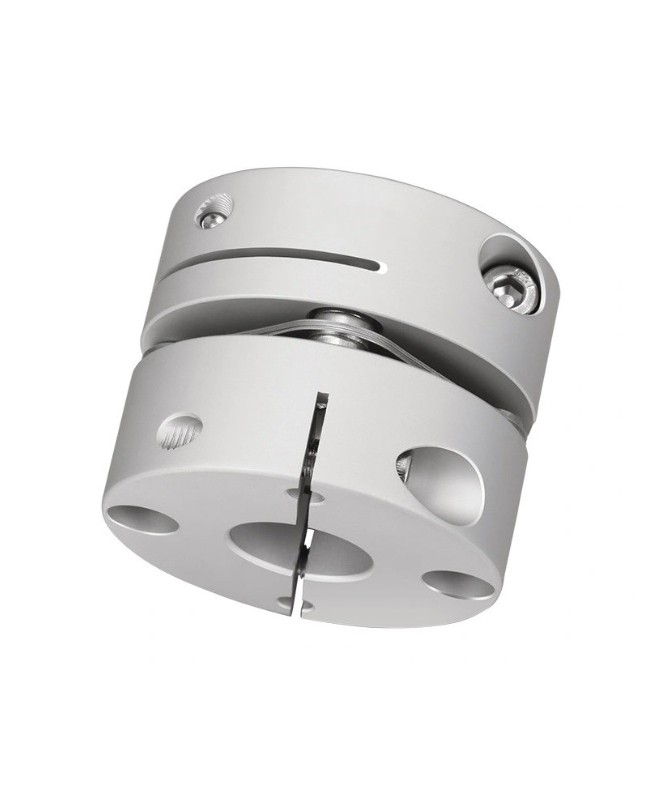

Coupling with steel element 10x10 - LF10
Model – LF 10x10
Length (L) – 45 mm
Outer diameter (D) – 56 mm
S – 5
LF – 20
F – 5.5
M – 4
d1 – 10
d2 – 10
Material – aluminium
Weight – 0.270 kg.
Motor couplings are mechanical devices used to connect the shafts of the motor and the load it drives.
The main functions of the coupling include:
1. Torque transmission: The coupling transmits torque from the motor to the driven mechanism or device.
2. Misalignment compensation: It can compensate for small misalignments between the motor and load shafts, ensuring smooth and trouble-free motion transmission.
3. Vibration damping: Some couplings have elements that help reduce vibrations and shocks that may occur during operation, protecting both the motor and the driven mechanism.
4. Easy installation and removal: They allow easy connection and disconnection of shafts, facilitating system servicing and maintenance.
5. Precision: For stepper motors, precision is important, so couplings must ensure precise motion transmission without backlash or distortion.
The choice of the appropriate coupling depends on the specific requirements of the application and the characteristics of the motor and load.
