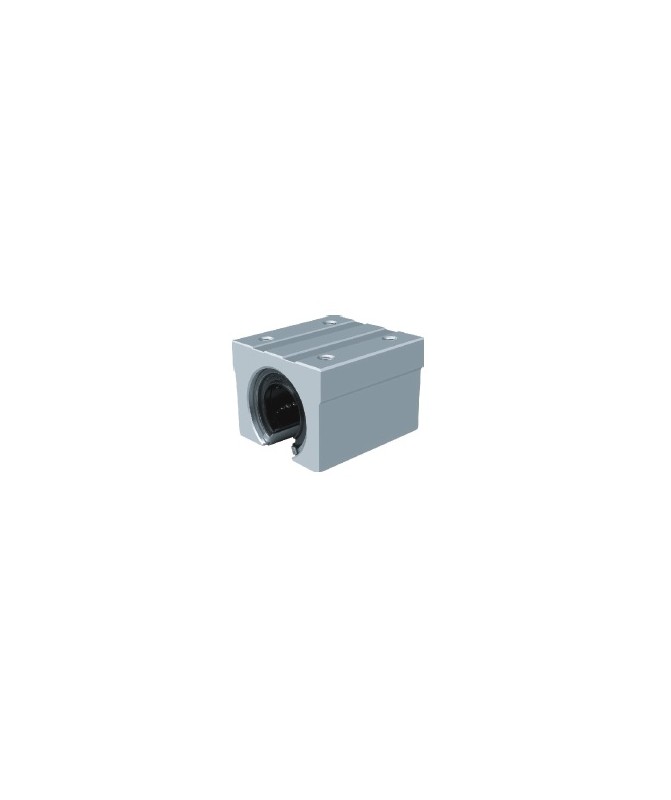

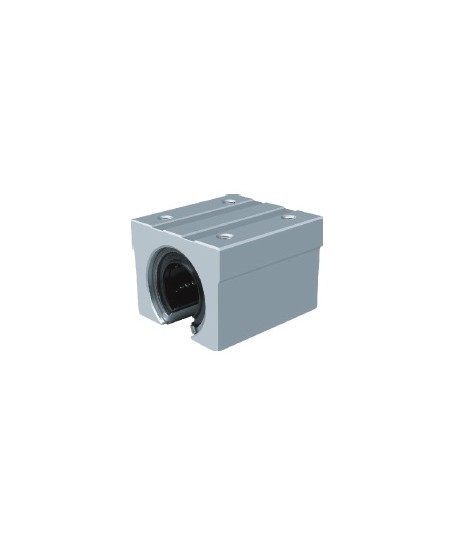

Linear Bearing SBR - C25 - EXSBR25UU
Diameter – 25
h – 27
E – 30
W - 60
L - 65
F - 47
T – 14
h1 - 11.5
θ - 500
B - 40
C – 40
S – M 6
e - 12
Dynamic load - 10.1 tonnes
Static load - 16.1 tonnes
Weight – 0.450 kg
SBR UU series linear bearings are linear guides designed to ensure smooth and precise movement along a specific axis. These bearings are used in various machines and equipment such as machine tools, automated systems, and 3D printers.
Key features:
Linear motion: Provide low friction and high-precision linear movement.
Bearing housing: Made of aluminium for durability and high strength.
Seals: The bearings have double seals (designation "UU"), which protect them from dust and contamination, extending their service life.
Easy to install: Equipped with mounting holes for easy equipment installation.
Compatibility: Suitable for use with round shafts of various sizes, making them versatile for many applications.
