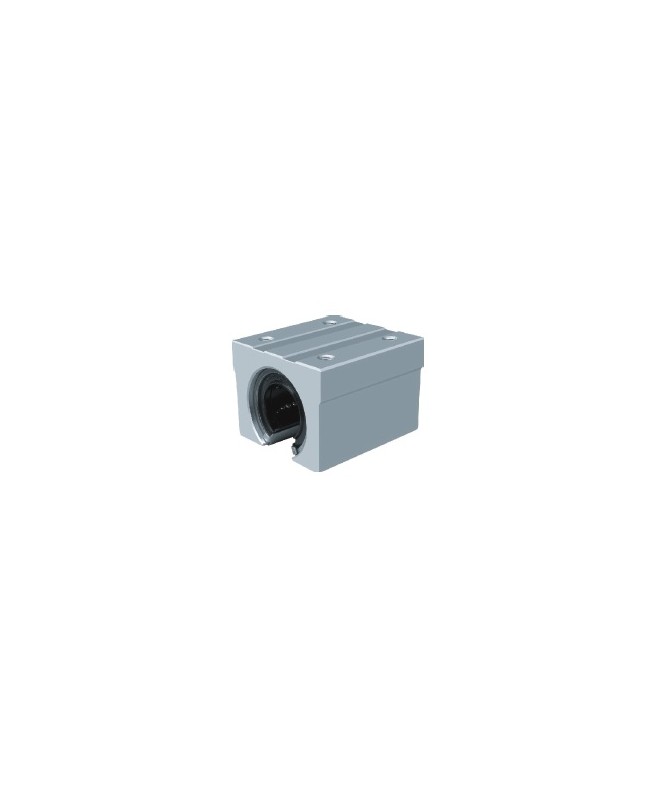

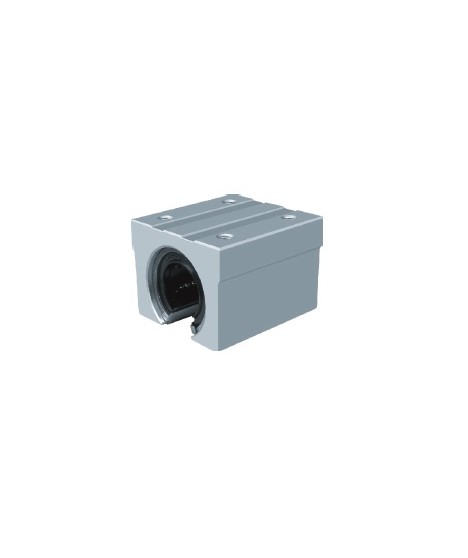

Linear Bearing SBR - C16 - EXSBR16UU
Diameter – 16
h – 20
E – 22.5
W - 45
L - 45
F - 33
T – 9
h1 - 10
θ - 800
B - 32
C – 30
S – M 5
e - 12
Dynamic load - 5.9 tonnes
Static load - 9.1 tonnes
Weight – 0.150 kg
SBR UU series linear bearings are linear guides designed to ensure smooth and precise movement along a specific axis. These bearings are used in various machines and equipment such as machine tools, automated systems, and 3D printers.
Key features:
Linear motion: Provide low friction and high-precision linear motion.
Bearing housing: Made of aluminium for durability and high strength.
Seals: The bearings have double seals (designation "UU"), which protect them from dust and contamination, extending their service life.
Easy to install: Equipped with mounting holes for easy equipment installation.
Compatibility: Suitable for use with round shafts of various sizes, making them versatile for many applications.
