Pulse Extender - EXPULEX1

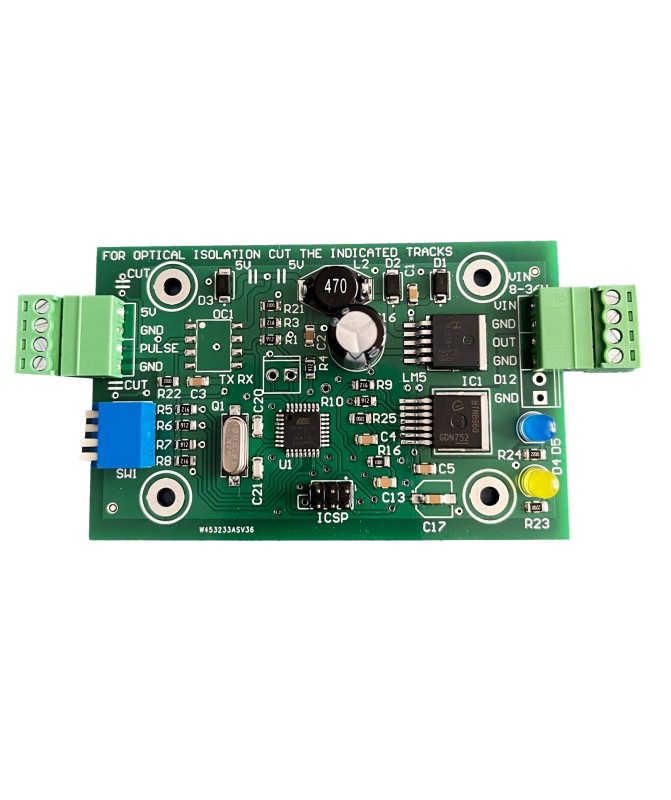

Pulse extender is a device for extending rectangular pulses and increasing their amplitude. It consists of a microcontroller board housed in a metal enclosure, convenient for mounting. Connection to the device is made via screw terminals, which are also plug terminals. There are two terminals – input and output. The maximum level of input pulses is 5V. Upon detecting a rising edge of a rectangular pulse, the microcontroller generates another pulse with a defined duration and amplitude. The pulse duration depends on the device settings. It is adjusted using a 4-channel DIP switch located next to the input terminal. There are 4 switches, allowing 16 combinations for the length of the output pulse.
