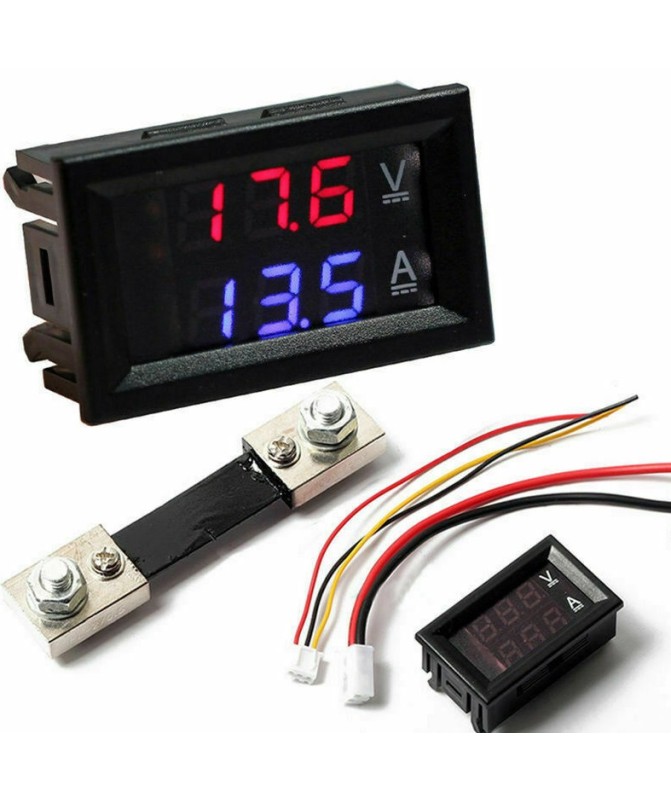

Digital Voltmeter and Ammeter for DC Voltage 100V/100A - EXDC100

Digital DC Voltmeter and Ammeter M3430 is used for measuring DC voltage within the range of 4.5 - 100VDC. Below 4.5V the voltmeter does not work, above 100V - it will burn out. Reverse voltage protection is available. The device power supply is in the range of 4.5 - 30VDC. The power supply and measurement circuits are separate, be careful when applying voltages!!! The device also measures DC current, within the range of 0 - 100A. Current measurement is performed via a shunt resistor (included in the kit). Quiescent current consumption is approximately 20mA. Voltage is displayed on a 7-segment LED display, with a total of 3 digits per value. Installation is achieved by pressing into a hole with approximate dimensions of 46 x 27mm.

• Pin connections:

- Thin red wire: VCC, do not exceed 30VDC

- Thin yellow wire: VIN, measured voltage

- Thin black wire:GND, common ground

- Thick red wire: I+, positive current input

- Thick black wire: I-, negative current input

• Wiring diagrams:

• Advantages of the Digital DC Voltmeter and Ammeter

- Small module size allows for easy integration into devices

- Reverse voltage protection

- Low current consumption

- Easy readability of readings

• Applications of the Digital DC Voltmeter and Ammeter

- Automotive and industrial applications

- Monitoring and control of DC voltage and current

The device may measure only one of the two values!
