Pulse Width Modulation Controller for DC Brushed Motor 10-60V, 20A

Pulse-width modulation control for DC motor is used to control DC brushed motors (DC motor). The board allows control via pulse-width modulation. The pulse duty cycle is controlled by a potentiometer connected via a 20cm cable. The motor and power supply are connected to the board via screw terminals.

Available features:

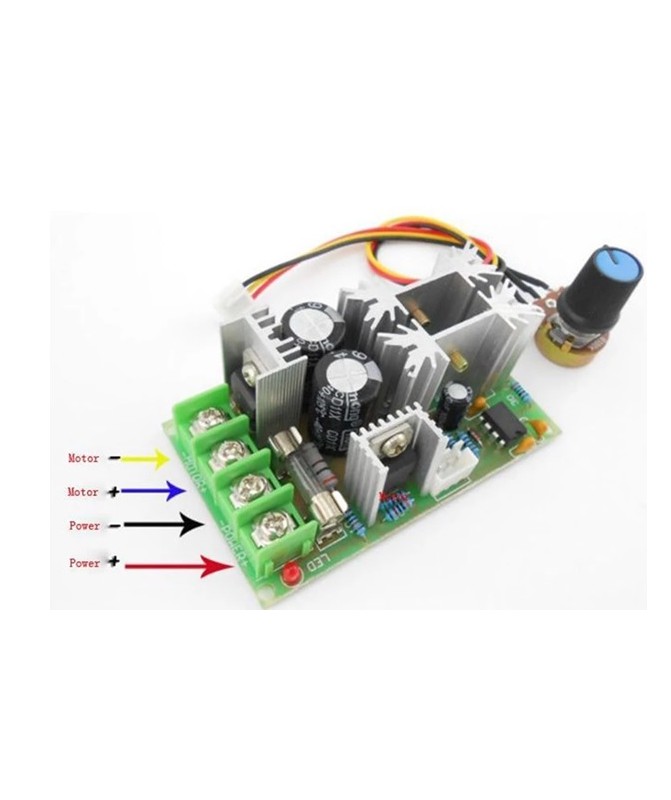

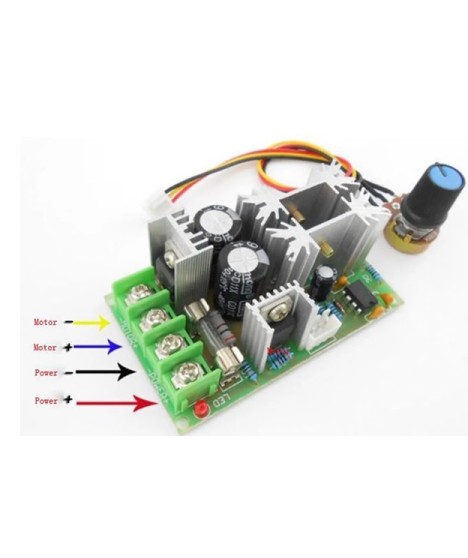

- input terminal: POWER + and -, used to power the board

- output terminal: MOTOR + and -, used to power the motor

An LED near the input terminal indicates the presence of supply voltage.

The board allows adjustment of the PWM duty cycle from 0 to 100%. This ensures precise control of the DC motor speed. Loads up to 1200W can be controlled (at 60V and 20A consumption). The board is built on the basis of powerful transistors. All power components are cooled by aluminium heatsinks.

Advantages of Pulse-width modulation control for DC motor:

·       Four mounting holes for stable mounting

·         Easy adjustment of output voltage via potentiometer

·         High performance – up to 20A output current.

·         Compact board size allows easy integration into devices

Applications of Pulse-width modulation control for DC motor:

·         Control of DC motors

·         Industrial applications

·         Applications in DC motor drives

·     Providing the required supply voltage for the motor when a higher supply voltage is present in the machine or system.
