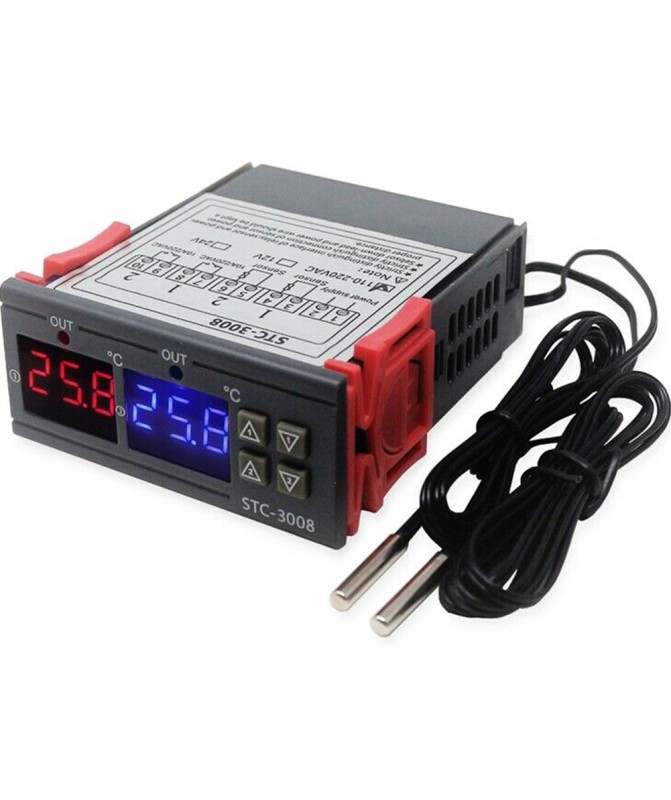

Dual Digital Thermostat STC-3008 with 10A Contacts

Dual Digital Thermostat STC-3008 with 10A Contacts

Specifications:

  • Input voltage: 110-230VAC
  • Connector types: Screw terminal
  • Operating range: 50℃+120℃
  • Accuracy: 0.1℃
  • Inputs:

- Power supply voltage input

- Temperature sensor inputs NTC (included in the kit)

  • Outputs

- Relay output for heating

- Relay output for cooling

  • Maximum permissible current of relay outputs: 10A
  • Dual display for visualization
  • Dimensions: 85.5x75x34.3 mm
  • Weight: 0.2 kg
€16.50 pcs
Tax included

Thermostat STC-3008 is an integrated temperature control module. It uses two NTC type temperature sensors to measure the input value. It allows setting various parameters such as:

  • Operating mode – cooling, heating, cooling and heating
  • Setting the temperature difference for triggering the output relays
  • Setting the alarm temperature
  • Compressor delay

The power supply for the Thermostat STC-3008 is via a screw terminal. The power supply range is 110-230VAC.

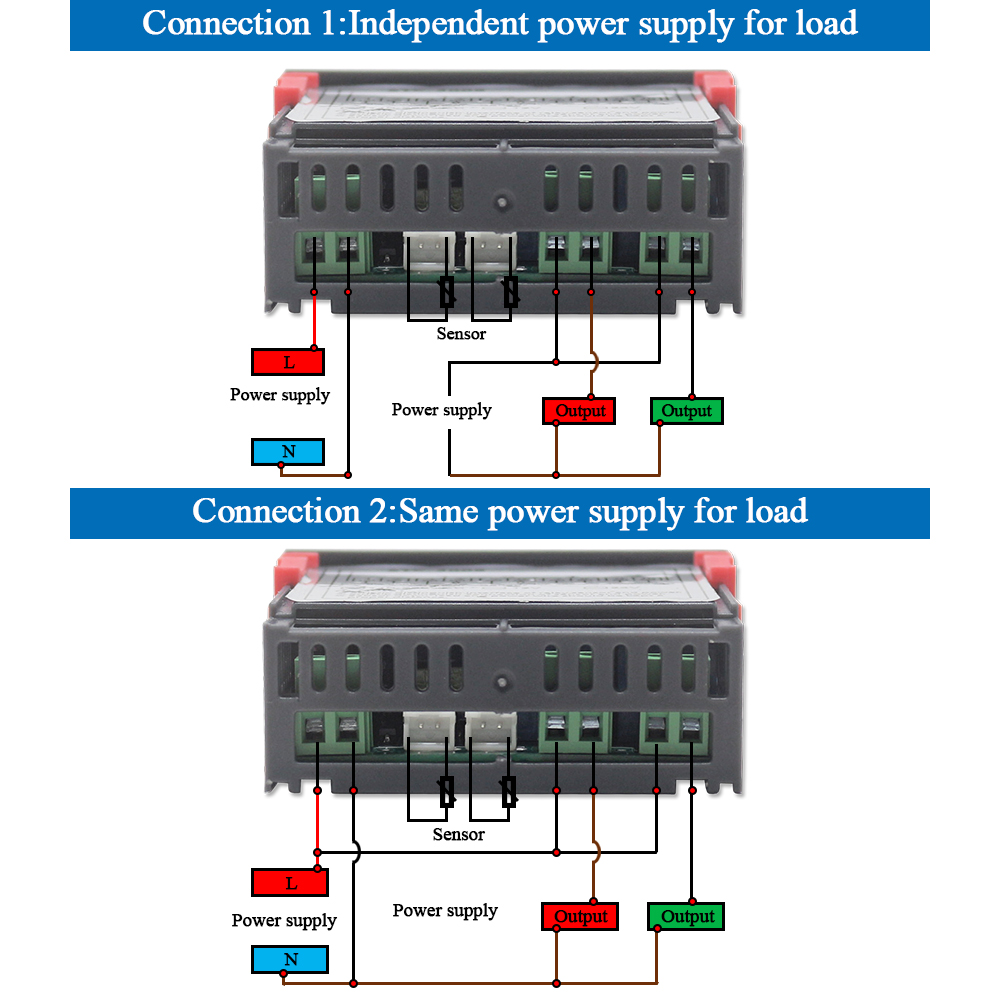

The NTC type temperature sensors have a cable length of 1m. They are connected to the terminals marked on the diagram.

The output relays have a load capacity of 10A and a maximum voltage of 230VAC

WARNING: Connections must only be made with the input voltage switched off. Strictly adhere to the pinouts of the temperature sensor terminals.

Advantages of the Thermostat STC-3008:

  • Easy calibration
  • Quick setup via 4 buttons
  • High precision
  • Dual display for two temperatures

Intended use of the Thermostat STC-3008:

Temperature control in:

  • Freezers and tanks
  • Aquariums
  • Fermentation process
  • Incubators
  • Germination
  • Drying by heating
Схема на свързване 413,8 KB
Ръководство 515,6 KB
