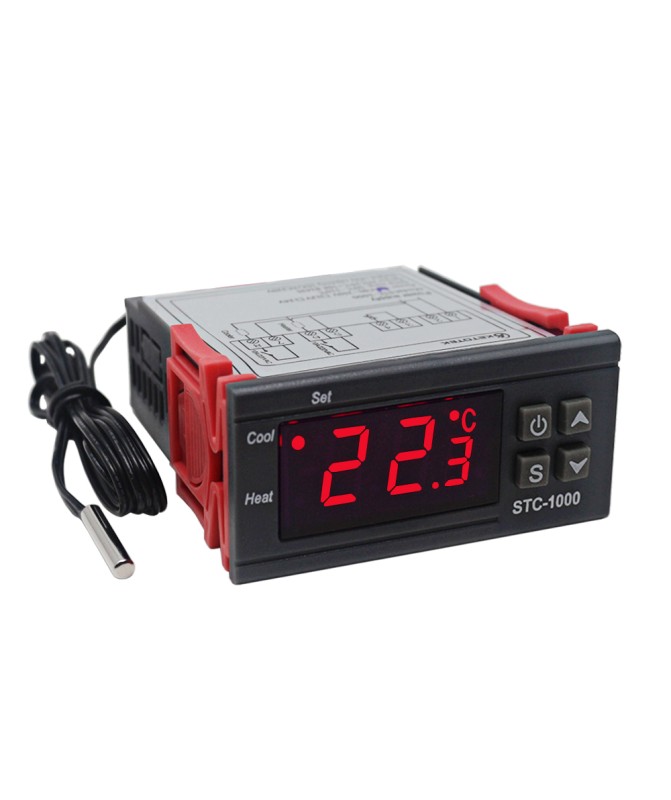

Digital Thermostat STC-1000 with 10A Contacts

Thermostat STC-1000 is an integrated temperature control module. It uses a single NTC

temperature sensor to measure the input value and allows setting various parameters such as:

·  Operating mode – cooling, heating, cooling and heating

·         Setting the temperature differential for relay activation

·         Setting the alarm temperature

·         Compressor delay

The power supply for the Thermostat STC-1000 is via a screw terminal and has a range of 110-220VAC.

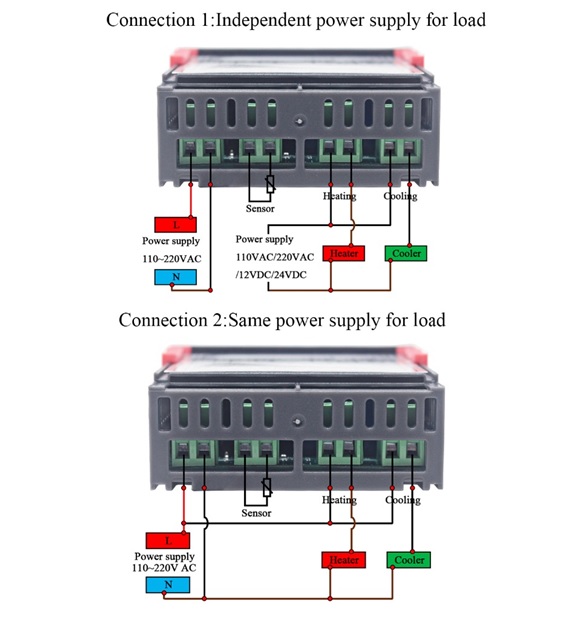

The NTC temperature sensor has a cable length of 1m. It connects to the terminal marked on the diagram.

The output relays have a load capacity of 10A and a maximum voltage of 220VAC

WARNING: Connections must only be made with the input voltage switched off. Strictly observe the pinouts of the temperature sensor terminals.

            Advantages of the Thermostat STC-1000:

            ·         Easy calibration

            ·         Quick setup via 4 buttons

            ·         High precision

           Application of the Thermostat STC-1000:

           Temperature control in:

           ·         Freezers and tanks

           ·         Aquariums

           ·         Fermentation processes

           ·         Incubators

           ·         Germination
