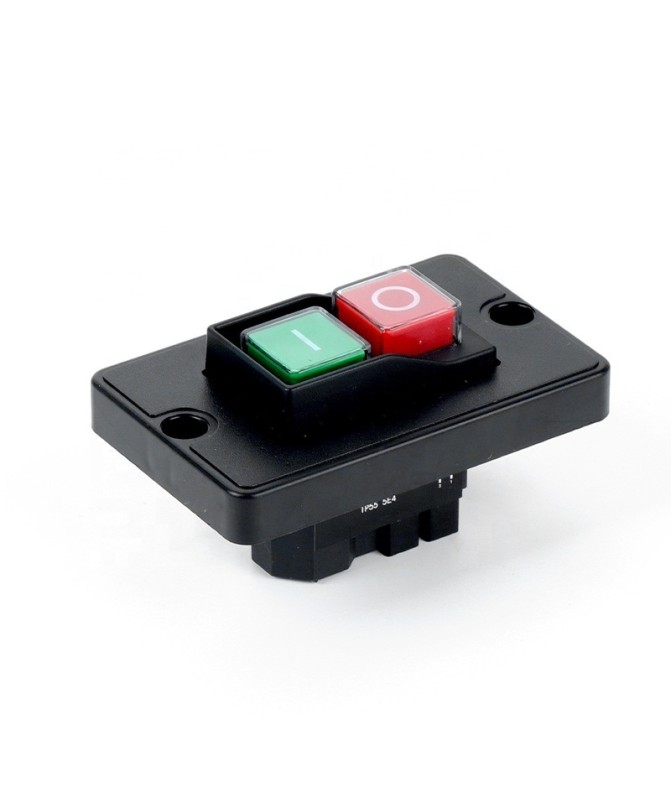

Electromagnetic Button YCZ2-B01 – ON/OFF Switch
Technical specifications:
Model: YCZ2-B01
Type: Electromagnetic Button
Function: ON / OFF (START / STOP)
Rated voltage: 220 - 250V AC
Rated current: up to 8A
Contacts: NO / NC
Mounting: Panel / in housing
Control: Green button (START) + Red button (STOP)
Protection rating: IP55 (with protective silicone cover)
Safety function: No-Volt Release (Undervoltage protection)
Material: Impact-resistant plastic and rubberised buttons
Certifications: CE, TUV
Weight: 0.080 kg.
The YCZ2-B01 electromagnetic switch is a critical component for workplace safety. It operates with an integrated coil that keeps the contacts closed only while mains voltage is present. If the power supply is interrupted, the coil releases the mechanism and the machine switches off automatically. This prevents accidents where the machine might start up unexpectedly when power is restored.
The model is equipped with sealed buttons that protect internal components from fine dust, wood shavings, and moisture, which are typical in industrial environments.
✅ Applications:
Woodworking machines
Metalworking machines
Compressors
Power tools
Workshops
Industrial applications
✅ Advantages:
High operational safety
Prevents unexpected startup
Easy installation
Reliable operation
Suitable for professional use
